- Unit of Measure - Millimeters
- Provides smooth plate sequence control
- Systematically draw floating plates & inserts apart
- Maximum Operating Temperature of 250°F (120°C)
- Four available sizes: 10mm, 13mm, 16mm, 20mm
- For installation, tighten screw to the desired amount of friction

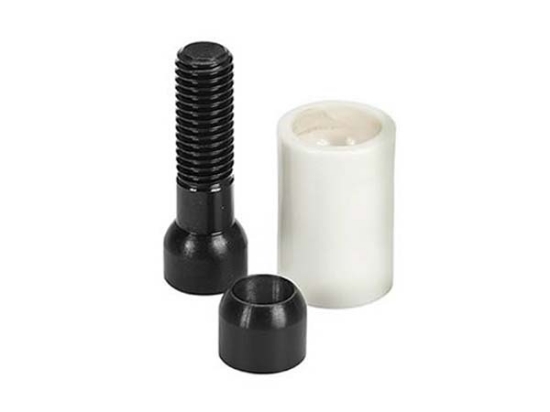

Friction Puller
PCS Company's Friction Pullers are designed to provide plate sequence control. The Friction Puller controls plate movement and utilizes friction at a particular setting to release the plate once travel limits are reached. This product can be used to systematically draw floating plates and inserts. Available sizes include: 10mm, 13mm, 16mm, and 20mm. Maximum operating temperature of 250° F or 120° C.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | Description | B | D | d1 | L | M ( Thread ) | Max Force | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| FP-10P | Assembly | 4 | 10 | 7.6 | 17 | M5-.8 | 32.5 kg or 70 lbs | $37.94 | ||
| FP-10S | Sleeve | N/A | 10 | N/A | 17 | N/A | N/A | $21.55 | ||
| FP-13F | Fastener | 5 | N/A | 9.6 | N/A | M6-1 | N/A | $11.80 | ||
| FP-13P | Assembly | 5 | N/A | 9.6 | 20 | M6-1 | 62.5 kg or 135 lbs | $43.50 | ||
| FP-13S | Sleeve | N/A | 13 | N/A | 20 | N/A | N/A | $21.90 | ||
| FP-13W | Washer | N/A | N/A | N/A | N/A | N/A | N/A | $10.62 | ||
| FP-16P | Assembly | 6 | 16 | 11.6 | 25 | M8-1.25 | 150.0 kg or 330 lbs | $43.16 | ||
| FP-16S | Sleeve | N/A | 16 | N/A | 25 | N/A | N/A | $22.35 | ||
| FP-20P | Assembly | 6 | 20 | 14.6 | 30 | M10-1.5 | 212.5 kg or 470 lbs | $46.28 | ||
| FP-20S | Sleeve | N/A | 20 | N/A | 30 | N/A | N/A | $23.09 |
