- Space saving
- Contourable
- Suitable for gating below the parting line
- Highly wear resistant hot working steel M2 (1.3343) 54+2 HRC
- Unit of Measure - Millimeters

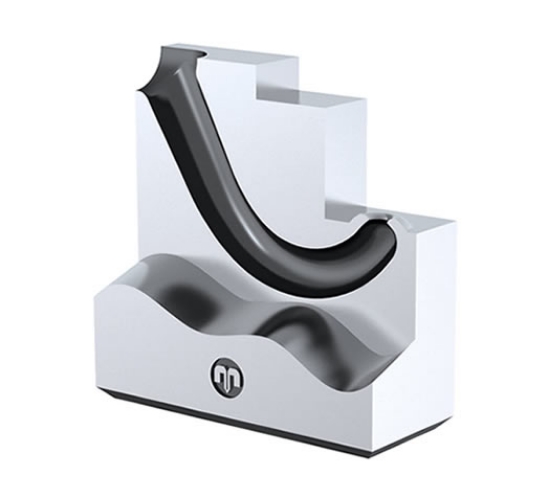

i-mold Contourable Version TGLL
PCS Company offers i-mold space saving contourable tunnel gate inserts in the TGLL version. The TGLL inserts are capable of a contourable tunnel gate below the parting line. Made of highly wear resistant hot work M2 steel. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | b Length | b1 Width | h1 | d1 Gate | d3 Runner | M Thread | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGLL-1 | 18 | 8 | 8.5 | 0.6-1.2 | 4 | 5 | 35 | 25 | 15 | $266.68 | ||
| TGLL-2 | 25 | 10 | 10.5 | 0.8-1.8 | 5 | 5 | 120 | 75 | 50 | $280.52 | ||
| TGLL-3 | 30 | 12 | 12.5 | 0.5x4.5-1.5x5.5 | 6 | 6 | 1000 | 500 | 300 | $315.75 |
