- Unit of Measure - Inch
- High flow design provides maximum cooling rates
- Viton Seals Included
- Easily installed and removed from cooling circuit
- Thin wall stainless steel tubes
- Made in the U.S.A.

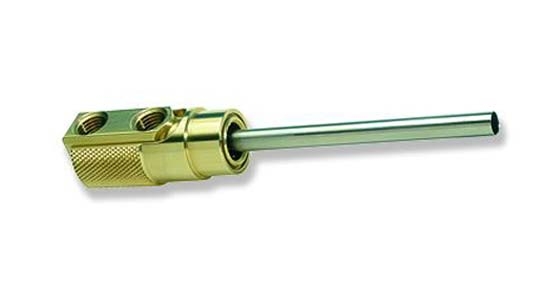

Quick-Coupler Type Cascade Assemblies
The Quick-Coupler Type Cascade Assembly can be installed and removed without disconnecting the coolant lines. Its robust construction ensures long life and dependable performance. The high flow design provides maximum cooling rates. Assemblies include brass head, 12" high flow stainless tube and brass pipe plug.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Outlet Hole Location | C Outlet Hole Spread | Connector Series | H Head Width | L Length | O.D. | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SC121N-4 | 1 3/8 | 1 1/4 | 500 | 1 1/4 | 3.125 | 1 3/8 | $39.82 | ||
| SC121N-6 | 1 3/8 | 1 1/4 | 500 | 1 1/4 | 3.125 | 1 3/8 | $39.82 | ||
| SC141N-4 | 1 5/32 | 1 | 300 | 1 | 2.5 | 1 1/8 | $34.89 | ||
| SC146N-4 | 1 5/32 | 11/16 | 300 | 1 | 2.187 | 1 1/8 | $32.81 | ||
| SC181N | 31/32 | 1 | 200 | 13/16 | 2.25 | 7/8 | $30.79 | ||
| SC186N | 31/32 | 11/16 | 200 | 13/16 | 1.937 | 7/8 | $29.14 |
