- For flat parting surfaces, including companion vestige (gate dimple) with integrated cutting edge
- Ready to use! No adjustments necessary
- Available in hardness 60HRC
- Highly wear resistant hot working steel M2 (1.3343)
- Supplied with companion vestige (gate dimple)
- Unit of Measure - Millimeters

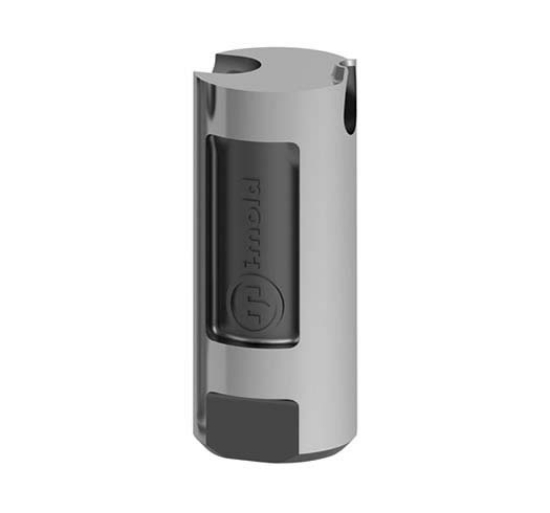

i-mold Standard Version S2 - Round
PCS Company offers i-mold Standard S2 - Round tunnel gate inserts. These inserts are ready to use with no adjustments required. The gate point diameter of "Standard" tunnel gate inserts is already completely constructed. Request technical assistance for your application. Include the 3D data of the part in assembly with core and cavity splits, drawing or image clearly indicating your gate location requirement plus specific resin grade technical datasheet.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | d Dia. | h Height | d1 Gate | d3 Runner | d2 Dimple Dia. | M Thread | Shot Wt.(g) - High flow | Shot Wt.(g) - Med flow | Shot Wt.(g) - Low flow | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TGR10-08-S2-H | 10 | 22 | 0.8 | 4 | 2.2 | 5 | 5 | 4 | 3 | $150.55 | ||
| TGR10-12-S2-H | 10 | 22 | 1.2 | 4 | 2.6 | 5 | 20 | 12 | 8 | $150.55 | ||
| TGR10-16-S2-H | 10 | 22 | 1.6 | 4 | 3 | 5 | 30 | 20 | 12 | $150.55 | ||
| TGR12-12-S2-H | 12 | 22 | 1.2 | 5 | 2.6 | 5 | 20 | 12 | 8 | $164.24 | ||
| TGR12-16-S2-H | 12 | 22 | 1.6 | 5 | 3 | 5 | 30 | 20 | 12 | $164.24 | ||
| TGR12-20-S2-H | 12 | 22 | 2 | 5 | 3.4 | 5 | 50 | 35 | 25 | $164.24 | ||
| TGR14-16-S2-H | 14 | 22 | 1.6 | 6 | 3 | 6 | 30 | 20 | 10 | $176.77 | ||
| TGR14-20-S2-H | 14 | 22 | 2 | 6 | 3.4 | 6 | 50 | 35 | 25 | $176.77 | ||
| TGR14-24-S2-H | 14 | 22 | 2.4 | 6 | 3.8 | 6 | 100 | 70 | 45 | $176.77 | ||
| TGR14-28-S2-H | 14 | 22 | 2.8 | 6 | 4.2 | 6 | 200 | 120 | 75 | $176.77 | ||
| TGR6-06-S2-H | 6 | 17 | 0.6 | 2.5 | 1.9 | 4 | 3 | 2 | 1 | $143.70 | ||
| TGR8-06-S2-H | 8 | 22 | 0.6 | 3 | 1.9 | 4 | 3 | 2 | 1 | $146.00 | ||
| TGR8-08-S2-H | 8 | 22 | 0.8 | 3 | 2.1 | 4 | 5 | 4 | 3 | $146.00 |
