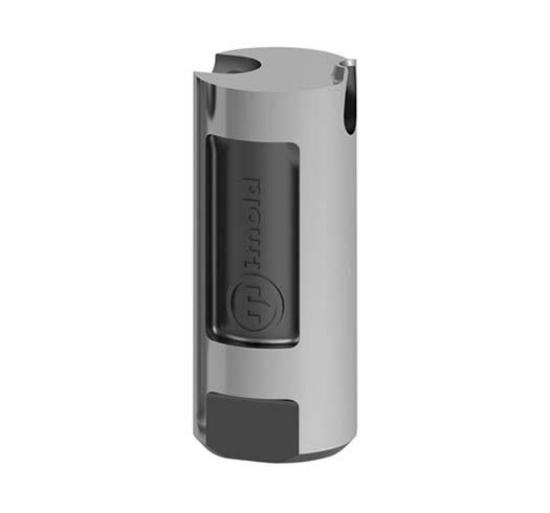

Picture of TGR10-16-S2-H Picture of TGR10-16-S2-H Picture of TGR10-16-S2-H Picture of TGR10-16-S2-H Picture of TGR10-16-S2-H

TGR10-16-S2-H

$150.55
PCS Company offers i-mold TGR Sub-Gate Tunnel Inserts, Round, Version S2, 60 HRC, Gatepoint 1.6mm
The actual product may differ slightly from the image displayed on the website.
10x22+0.8, GTR10-16, E1680/10/1.6, Z 1050 / 10 x 22 x 1,6
Product specifications
d Dia. 10
h Height 22
d1 Gate 1.6
d3 Runner 4
d2 Dimple Dia. 3
M Thread 5
Shot Wt.(g) - High flow 30
Shot Wt.(g) - Med flow 20
Shot Wt.(g) - Low flow 12
