- Unit of Measure - Inch
- Material - H-13
- Hardness - 50-52 Rc
- One piece construction to improve strength and longevity
- Corner radius on blade cross-section can be special ordered.
- Pin to Head Radius - 1/32"

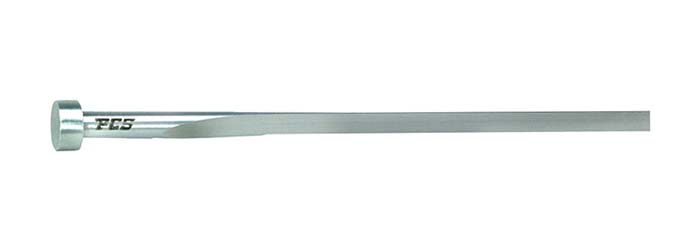

Ejector Blades - Inch
PCS Company's Ejector Blades - Inch are designed and manufactured using one piece construction for superior strength and durability. Standard lengths range from 5" to 10-3/8" with pin diameters ranging from 1/8" to 1/2". All blades are constructed of H-13. If you cannot find an off the shelf ejector blade to meet your requirement, contact our Custom Components Team.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | H Head Diameter | L Overall Length | T Head Thickness | A Pin Diameter | BL Blade Length | D Blade Thickness | W Blade Width | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| BE11-2446 | 9/32 | 6-3/8 | 5/32 | 0.156 | 4-3/8 | 0.024 | 0.14 | $35.56 | ||
| BE11-3236 | 9/32 | 6 | 5/32 | 0.156 | 3 | 0.032 | 0.14 | $35.56 | ||
| BE11-3238 | 9/32 | 8 | 5/32 | 0.156 | 3 | 0.032 | 0.14 | $35.56 | ||
| BE11-3246 | 9/32 | 6-3/8 | 5/32 | 0.156 | 4-3/8 | 0.032 | 0.14 | $33.85 | ||
| BE11-3247 | 9/32 | 7-3/8 | 5/32 | 0.156 | 4-3/8 | 0.032 | 0.14 | $33.85 | ||
| BE11-3248 | 9/32 | 8-3/8 | 5/32 | 0.156 | 4-3/8 | 0.032 | 0.14 | $33.85 | ||
| BE11-4636 | 9/32 | 6 | 5/32 | 0.156 | 3 | 0.046 | 0.14 | $35.56 | ||
| BE11-4638 | 9/32 | 8 | 5/32 | 0.156 | 3 | 0.046 | 0.14 | $35.56 | ||
| BE11-4646 | 9/32 | 6-3/8 | 5/32 | 0.156 | 4-3/8 | 0.046 | 0.14 | $33.85 | ||
| BE11-4647 | 9/32 | 7-3/8 | 5/32 | 0.156 | 4-3/8 | 0.046 | 0.14 | $33.85 | ||
| BE11-4648 | 9/32 | 8-3/8 | 5/32 | 0.156 | 4-3/8 | 0.046 | 0.14 | $33.85 | ||
| BE13-2446 | 3/8 | 6-3/8 | 3/16 | 0.187 | 4-3/8 | 0.024 | 0.172 | $38.18 | ||
| BE13-3236 | 3/8 | 6 | 3/16 | 0.187 | 3 | 0.032 | 0.172 | $38.18 | ||
| BE13-3238 | 3/8 | 8 | 3/16 | 0.187 | 3 | 0.032 | 0.172 | $38.18 | ||
| BE13-3246 | 3/8 | 6-3/8 | 3/16 | 0.187 | 4-3/8 | 0.032 | 0.172 | $36.34 | ||
| BE13-3247 | 3/8 | 7-3/8 | 3/16 | 0.187 | 4-3/8 | 0.032 | 0.172 | $36.34 | ||
| BE13-3248 | 3/8 | 8-3/8 | 3/16 | 0.187 | 4-3/8 | 0.032 | 0.172 | $36.34 | ||
| BE13-4636 | 3/8 | 6 | 3/16 | 0.187 | 3 | 0.046 | 0.172 | $38.18 | ||
| BE13-4638 | 3/8 | 8 | 3/16 | 0.187 | 3 | 0.046 | 0.172 | $38.18 | ||
| BE13-4646 | 3/8 | 6-3/8 | 3/16 | 0.187 | 4-3/8 | 0.046 | 0.172 | $36.34 | ||
| BE13-4647 | 3/8 | 7-3/8 | 3/16 | 0.187 | 4-3/8 | 0.046 | 0.172 | $36.34 | ||
| BE13-4648 | 3/8 | 8-3/8 | 3/16 | 0.187 | 4-3/8 | 0.046 | 0.172 | $36.34 | ||
| BE13-6236 | 3/8 | 6 | 3/16 | 0.187 | 3 | 0.062 | 0.172 | $38.18 | ||
| BE13-6238 | 3/8 | 8 | 3/16 | 0.187 | 3 | 0.062 | 0.172 | $38.18 | ||
| BE13-6246 | 3/8 | 6-3/8 | 3/16 | 0.187 | 4-3/8 | 0.062 | 0.172 | $36.34 | ||
| BE13-6247 | 3/8 | 7-3/8 | 3/16 | 0.187 | 4-3/8 | 0.062 | 0.172 | $36.34 | ||
| BE13-6248 | 3/8 | 8-3/8 | 3/16 | 0.187 | 4-3/8 | 0.062 | 0.172 | $36.34 | ||
| BE17-3235 | 7/16 | 5 | 3/16 | 0.25 | 3 | 0.032 | 0.234 | $40.11 | ||
| BE17-3236 | 7/16 | 6 | 3/16 | 0.25 | 3 | 0.032 | 0.234 | $42.13 | ||
| BE17-3238 | 7/16 | 8 | 3/16 | 0.25 | 3 | 0.032 | 0.234 | $42.13 | ||
| BE17-32410 | 7/16 | 10-3/8 | 3/16 | 0.25 | 4-3/8 | 0.032 | 0.234 | $40.11 | ||
| BE17-3246 | 7/16 | 6-3/8 | 3/16 | 0.25 | 4-3/8 | 0.032 | 0.234 | $40.11 | ||
| BE17-3247 | 7/16 | 7-3/8 | 3/16 | 0.25 | 4-3/8 | 0.032 | 0.234 | $40.11 | ||
| BE17-3248 | 7/16 | 8-3/8 | 3/16 | 0.25 | 4-3/8 | 0.032 | 0.234 | $40.11 | ||
| BE17-3249 | 7/16 | 9-3/8 | 3/16 | 0.25 | 4-3/8 | 0.032 | 0.234 | $40.11 | ||
| BE17-4635 | 7/16 | 5 | 3/16 | 0.25 | 3 | 0.046 | 0.234 | $40.11 | ||
| BE17-4636 | 7/16 | 6 | 3/16 | 0.25 | 3 | 0.046 | 0.234 | $42.13 | ||
| BE17-4638 | 7/16 | 8 | 3/16 | 0.25 | 3 | 0.046 | 0.234 | $42.13 | ||
| BE17-46410 | 7/16 | 10-3/8 | 3/16 | 0.25 | 4-3/8 | 0.046 | 0.234 | $40.11 | ||
| BE17-4646 | 7/16 | 6-3/8 | 3/16 | 0.25 | 4-3/8 | 0.046 | 0.234 | $40.11 | ||
| BE17-4647 | 7/16 | 7-3/8 | 3/16 | 0.25 | 4-3/8 | 0.046 | 0.234 | $40.11 | ||
| BE17-4648 | 7/16 | 8-3/8 | 3/16 | 0.25 | 4-3/8 | 0.046 | 0.234 | $40.11 | ||
| BE17-4649 | 7/16 | 9-3/8 | 3/16 | 0.25 | 4-3/8 | 0.046 | 0.234 | $40.11 | ||
| BE17-6235 | 7/16 | 5 | 3/16 | 0.25 | 3 | 0.062 | 0.234 | $40.11 | ||
| BE17-6236 | 7/16 | 6 | 3/16 | 0.25 | 3 | 0.062 | 0.234 | $42.13 | ||
| BE17-6238 | 7/16 | 8 | 3/16 | 0.25 | 3 | 0.062 | 0.234 | $42.13 | ||
| BE17-62410 | 7/16 | 10-3/8 | 3/16 | 0.25 | 4-3/8 | 0.062 | 0.234 | $40.11 | ||
| BE17-6246 | 7/16 | 6-3/8 | 3/16 | 0.25 | 4-3/8 | 0.062 | 0.234 | $40.11 | ||
| BE17-6247 | 7/16 | 7-3/8 | 3/16 | 0.25 | 4-3/8 | 0.062 | 0.234 | $40.11 | ||
| BE17-6248 | 7/16 | 8-3/8 | 3/16 | 0.25 | 4-3/8 | 0.062 | 0.234 | $40.11 | ||
| BE17-6249 | 7/16 | 9-3/8 | 3/16 | 0.25 | 4-3/8 | 0.062 | 0.234 | $40.11 | ||
| BE21-32410 | 1/2 | 10-3/8 | 1/4 | 0.312 | 4-3/8 | 0.032 | 0.296 | $45.11 | ||
| BE21-3246 | 1/2 | 6-3/8 | 1/4 | 0.312 | 4-3/8 | 0.032 | 0.296 | $47.40 | ||
| BE21-3247 | 1/2 | 7-3/8 | 1/4 | 0.312 | 4-3/8 | 0.032 | 0.296 | $47.40 | ||
| BE21-3248 | 1/2 | 8-3/8 | 1/4 | 0.312 | 4-3/8 | 0.032 | 0.296 | $47.40 | ||
| BE21-3249 | 1/2 | 9-3/8 | 1/4 | 0.312 | 4-3/8 | 0.032 | 0.296 | $47.40 | ||
| BE21-46410 | 1/2 | 10-3/8 | 1/4 | 0.312 | 4-3/8 | 0.046 | 0.296 | $45.11 | ||
| BE21-4646 | 1/2 | 6-3/8 | 1/4 | 0.312 | 4-3/8 | 0.046 | 0.296 | $47.40 | ||
| BE21-4647 | 1/2 | 7-3/8 | 1/4 | 0.312 | 4-3/8 | 0.046 | 0.296 | $47.40 | ||
| BE21-4648 | 1/2 | 8-3/8 | 1/4 | 0.312 | 4-3/8 | 0.046 | 0.296 | $47.40 | ||
| BE21-4649 | 1/2 | 9-3/8 | 1/4 | 0.312 | 4-3/8 | 0.046 | 0.296 | $47.40 | ||
| BE21-62410 | 1/2 | 10-3/8 | 1/4 | 0.312 | 4-3/8 | 0.062 | 0.296 | $45.11 | ||
| BE21-6246 | 1/2 | 6-3/8 | 1/4 | 0.312 | 4-3/8 | 0.062 | 0.296 | $47.40 | ||
| BE21-6247 | 1/2 | 7-3/8 | 1/4 | 0.312 | 4-3/8 | 0.062 | 0.296 | $47.40 | ||
| BE21-6248 | 1/2 | 8-3/8 | 1/4 | 0.312 | 4-3/8 | 0.062 | 0.296 | $47.40 | ||
| BE21-6249 | 1/2 | 9-3/8 | 1/4 | 0.312 | 4-3/8 | 0.062 | 0.296 | $47.40 | ||
| BE21-78410 | 1/2 | 10-3/8 | 1/4 | 0.312 | 4-3/8 | 0.078 | 0.296 | $45.11 | ||
| BE21-7846 | 1/2 | 6-3/8 | 1/4 | 0.312 | 4-3/8 | 0.078 | 0.296 | $47.40 | ||
| BE21-7847 | 1/2 | 7-3/8 | 1/4 | 0.312 | 4-3/8 | 0.078 | 0.296 | $47.40 | ||
| BE21-7848 | 1/2 | 8-3/8 | 1/4 | 0.312 | 4-3/8 | 0.078 | 0.296 | $47.40 | ||
| BE21-7849 | 1/2 | 9-3/8 | 1/4 | 0.312 | 4-3/8 | 0.078 | 0.296 | $47.40 | ||
| BE25-32410 | 5/8 | 10-3/8 | 1/4 | 0.375 | 4-3/8 | 0.032 | 0.359 | $53.89 | ||
| BE25-3246 | 5/8 | 6-3/8 | 1/4 | 0.375 | 4-3/8 | 0.032 | 0.359 | $56.63 | ||
| BE25-3247 | 5/8 | 7-3/8 | 1/4 | 0.375 | 4-3/8 | 0.032 | 0.359 | $56.63 | ||
| BE25-3248 | 5/8 | 8-3/8 | 1/4 | 0.375 | 4-3/8 | 0.032 | 0.359 | $56.63 | ||
| BE25-3249 | 5/8 | 9-3/8 | 1/4 | 0.375 | 4-3/8 | 0.032 | 0.359 | $56.63 | ||
| BE25-46410 | 5/8 | 10-3/8 | 1/4 | 0.375 | 4-3/8 | 0.046 | 0.359 | $53.89 | ||
| BE25-4646 | 5/8 | 6-3/8 | 1/4 | 0.375 | 4-3/8 | 0.046 | 0.359 | $56.63 | ||
| BE25-4647 | 5/8 | 7-3/8 | 1/4 | 0.375 | 4-3/8 | 0.046 | 0.359 | $56.63 | ||
| BE25-4648 | 5/8 | 8-3/8 | 1/4 | 0.375 | 4-3/8 | 0.046 | 0.359 | $56.63 | ||
| BE25-4649 | 5/8 | 9-3/8 | 1/4 | 0.375 | 4-3/8 | 0.046 | 0.359 | $56.63 | ||
| BE25-62410 | 5/8 | 10-3/8 | 1/4 | 0.375 | 4-3/8 | 0.062 | 0.359 | $53.89 | ||
| BE25-6246 | 5/8 | 6-3/8 | 1/4 | 0.375 | 4-3/8 | 0.062 | 0.359 | $56.63 | ||
| BE25-6247 | 5/8 | 7-3/8 | 1/4 | 0.375 | 4-3/8 | 0.062 | 0.359 | $56.63 | ||
| BE25-6248 | 5/8 | 8-3/8 | 1/4 | 0.375 | 4-3/8 | 0.062 | 0.359 | $56.63 | ||
| BE25-6249 | 5/8 | 9-3/8 | 1/4 | 0.375 | 4-3/8 | 0.062 | 0.359 | $56.63 | ||
| BE25-78410 | 5/8 | 10-3/8 | 1/4 | 0.375 | 4-3/8 | 0.078 | 0.359 | $53.89 | ||
| BE25-7846 | 5/8 | 6-3/8 | 1/4 | 0.375 | 4-3/8 | 0.078 | 0.359 | $56.63 | ||
| BE25-7847 | 5/8 | 7-3/8 | 1/4 | 0.375 | 4-3/8 | 0.078 | 0.359 | $56.63 | ||
| BE25-7848 | 5/8 | 8-3/8 | 1/4 | 0.375 | 4-3/8 | 0.078 | 0.359 | $56.63 | ||
| BE25-7849 | 5/8 | 9-3/8 | 1/4 | 0.375 | 4-3/8 | 0.078 | 0.359 | $56.63 | ||
| BE33-62510 | 3/4 | 10-3/8 | 1/4 | 0.5 | 5-3/8 | 0.062 | 0.484 | $94.00 | ||
| BE33-6258 | 3/4 | 8-3/8 | 1/4 | 0.5 | 5-3/8 | 0.062 | 0.484 | $94.00 | ||
| BE33-6259 | 3/4 | 9-3/8 | 1/4 | 0.5 | 5-3/8 | 0.062 | 0.484 | $94.00 | ||
| BE33-78510 | 3/4 | 10-3/8 | 1/4 | 0.5 | 5-3/8 | 0.078 | 0.484 | $94.00 | ||
| BE33-7858 | 3/4 | 8-3/8 | 1/4 | 0.5 | 5-3/8 | 0.078 | 0.484 | $98.76 | ||
| BE33-7859 | 3/4 | 9-3/8 | 1/4 | 0.5 | 5-3/8 | 0.078 | 0.484 | $98.76 | ||
| BE9-2446 | 1/4 | 6-3/8 | 1/8 | 0.125 | 4-3/8 | 0.024 | 0.1 | $32.93 | ||
| BE9-3235 | 1/4 | 5 | 1/8 | 0.125 | 3 | 0.032 | 0.1 | $31.34 | ||
| BE9-3236 | 1/4 | 6 | 1/8 | 0.125 | 3 | 0.032 | 0.1 | $32.93 | ||
| BE9-3246 | 1/4 | 6-3/8 | 1/8 | 0.125 | 4-3/8 | 0.032 | 0.1 | $31.34 | ||
| BE9-3247 | 1/4 | 7-3/8 | 1/8 | 0.125 | 4-3/8 | 0.032 | 0.1 | $32.93 | ||
| BE9-4635 | 1/4 | 5 | 1/8 | 0.125 | 3 | 0.046 | 0.1 | $31.34 | ||
| BE9-4636 | 1/4 | 6 | 1/8 | 0.125 | 3 | 0.046 | 0.1 | $32.93 | ||
| BE9-4646 | 1/4 | 6-3/8 | 1/8 | 0.125 | 4-3/8 | 0.046 | 0.1 | $31.34 | ||
| BE9-4647 | 1/4 | 7-3/8 | 1/8 | 0.125 | 4-3/8 | 0.046 | 0.1 | $32.93 |
