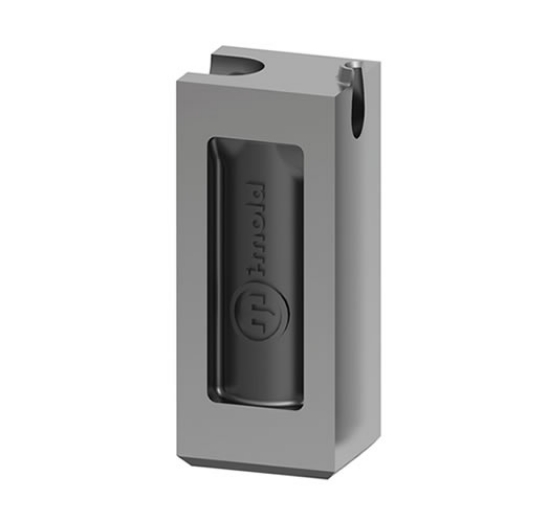

Picture of TGS10-16-S2-H Picture of TGS10-16-S2-H Picture of TGS10-16-S2-H Picture of TGS10-16-S2-H Picture of TGS10-16-S2-H

TGS10-16-S2-H

$153.27
PCS Company offers i-mold TGS Sub-Gate Tunnel Inserts, Square, Version S2, 60 HRC, Gate point 1.6mm
The actual product may differ slightly from the image displayed on the website.
10x8x22+0.8, GTE10-16, E1685/10/1.6, Z 1060 / 10 x 8 x 22 x 1,6
Product specifications
h Height 22
d1 Gate 1.6
d3 Runner 4
d2 Dimple Dia. 3
M Thread 5
Shot Wt.(g) - High flow 30
Shot Wt.(g) - Med flow 20
Shot Wt.(g) - Low flow 12
