DTEX8

$142.74

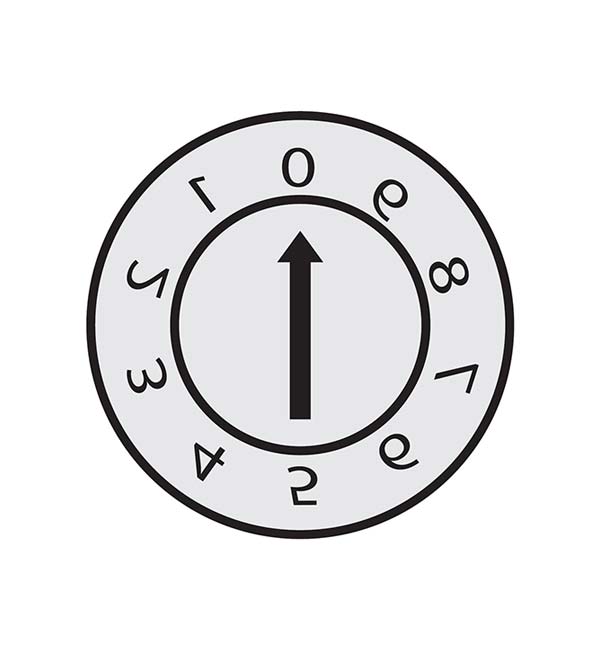

Indexable Insert Assembly, Numbers 0 - 9 & Arrow
The actual product may differ slightly from the image displayed on the website.
UOR0008
Product specifications
Configuration Assembly, Numbers 0 - 9 & Arrow
D Body Diameter 8
L Body Length 10
Body Engraving Depth 0.2
K - K.O. Hole Dia 3.0 ~ 7.0
B Center Insert Dia 5
F Cen. Ins. Length 9.7
MxP M2.3x0.25
TL - Thread Len. 3.2
Arrow Depth 0.4
Body Indexing 10 Equal Divisions
