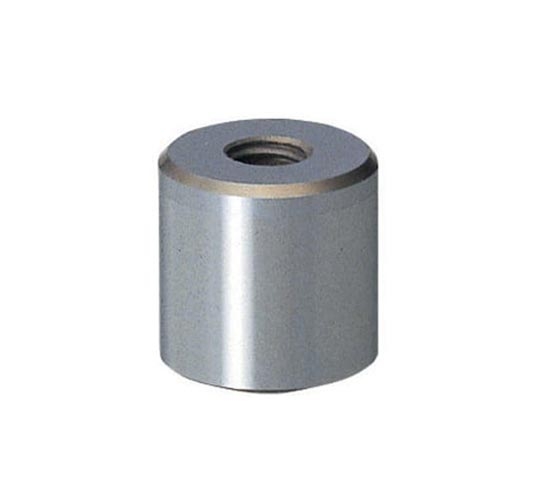

Picture of TPNFB20-11 Picture of TPNFB20-11 Picture of TPNFB20-11

TPNFB20-11

$42.12
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Bushing (Female) Only
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Bushing (Female) Only
D OD 20
L Shoulder Length 19.5
V Pin Diameter 13
E Pin Height 11
LR Lead Radius 0.5
LL Lead Chamfer Length 1
S Effective Engagement Distance 8.5
M Thread M6
