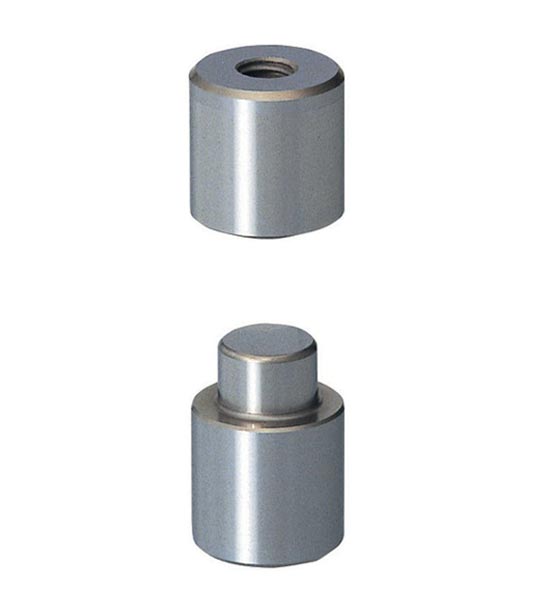

Picture of TPNF20-11 Picture of TPNF20-11 Picture of TPNF20-11

TPNF20-11

$84.12
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Full Set
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Full Set
D OD 20
L Shoulder Length 19.5
V Pin Diameter 13
E Pin Height 11
LR Lead Radius 0.5
LL Lead Chamfer Length 1
S Effective Engagement Distance 8.5
M Thread M6
