W-1317

$28.91

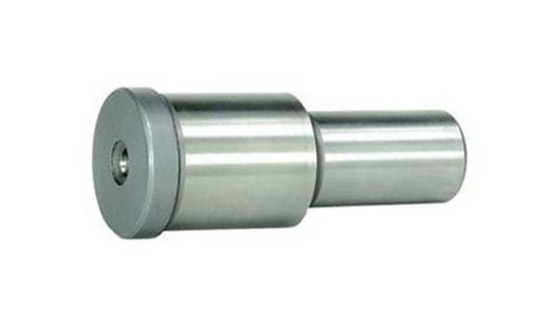

Leader Pin, Shoulder Type
The actual product may differ slightly from the image displayed on the website.
A-1317-GL, 71-317, SLP75X137L325
Product specifications
D Nominal Pin Diameter 3/4
Actual Pin Diameter 0.749
H Head Diameter 1.25
P Pin Length 1-7/8
L Overall Length 3-1/4
O Press Fit Length 1-3/8
