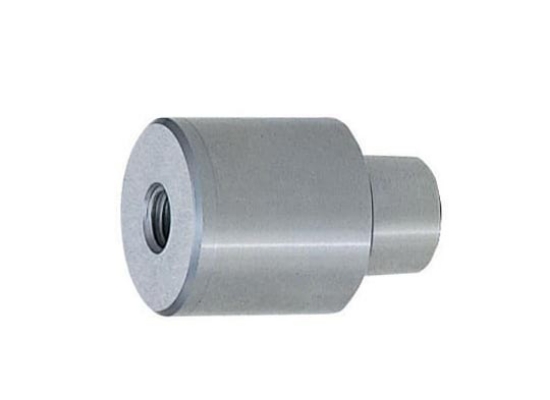

Picture of VTPNP16-5 Picture of VTPNP16-5 Picture of VTPNP16-5 Picture of VTPNP16-5

VTPNP16-5

$70.97
PCS Company's Metric JIS Precision Tapered Round Locks, Standard Installation, Concentricity 0.005 or less, Pin (Male) Only
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Pin (Male) Only
D OD 16
D Tolerance +0.005/-0
A Angle 5°
L Shoulder Length 14
V Pin Major Diameter 10
E Pin Projection 6
F 5
M Thread M5
