Picture of TPS-1 Picture of TPS-1 Picture of TPS-1 Picture of TPS-1

TPS-1

$143.70

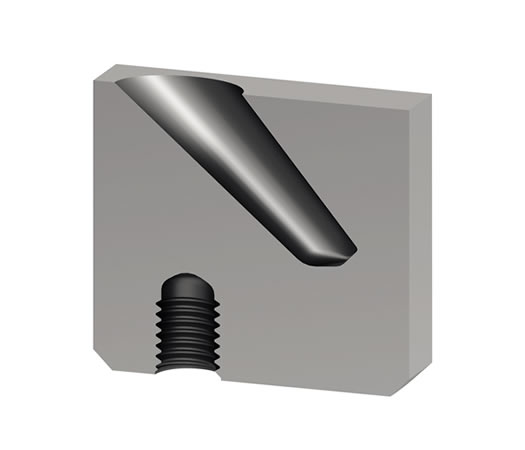

PCS Company offers i-mold TPS Sub-Gate Tunnel Inserts, 18x8x22mm, Contourable, 54 HRC
The actual product may differ slightly from the image displayed on the website.
18x8x22, E1696/18
Product specifications
b 18
b1 8
h Height 22
d1 Gate 0.8-1.8
d3 Runner 6
M Thread 4
Shot Wt.(g) - High flow 120
Shot Wt.(g) - Med flow 75
Shot Wt.(g) - Low flow 50
