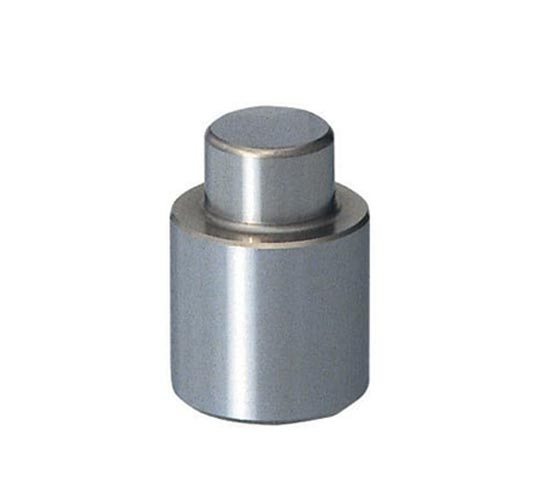

Picture of TPNFP16-7 Picture of TPNFP16-7 Picture of TPNFP16-7

TPNFP16-7

$40.71
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Pin (Male) Only
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Pin (Male) Only
D OD 16
L Shoulder Length 14.5
V Pin Diameter 10
E Pin Height 7
LR Lead Radius 0.5
LL Lead Chamfer Length 1
S Effective Engagement Distance 4.5
M Thread M5
