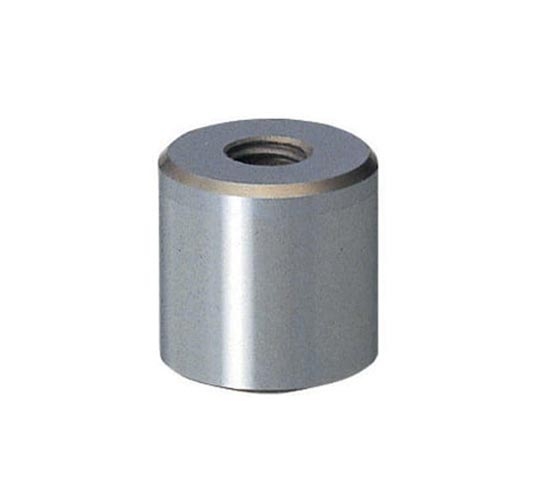

Picture of TPNFB13-16 Picture of TPNFB13-16 Picture of TPNFB13-16

TPNFB13-16

$50.87
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Bushing (Female) Only
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Bushing (Female) Only
D OD 13
L Shoulder Length 24.5
V Pin Diameter 7
E Pin Height 16
LR Lead Radius 0.5
LL Lead Chamfer Length 1
S Effective Engagement Distance 13.5
M Thread M4
