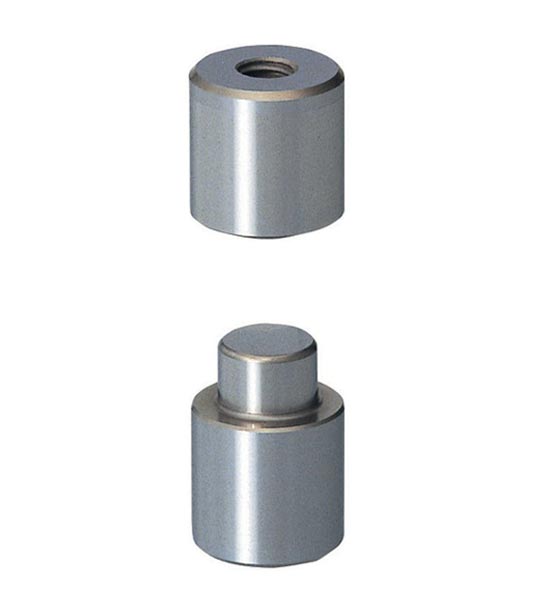

Picture of TPNF30-25 Picture of TPNF30-25 Picture of TPNF30-25

TPNF30-25

$122.26
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Full Set
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Full Set
D OD 30
L Shoulder Length 39
V Pin Diameter 20
E Pin Height 25
LR Lead Radius 1
LL Lead Chamfer Length 2
S Effective Engagement Distance 21
M Thread M10
