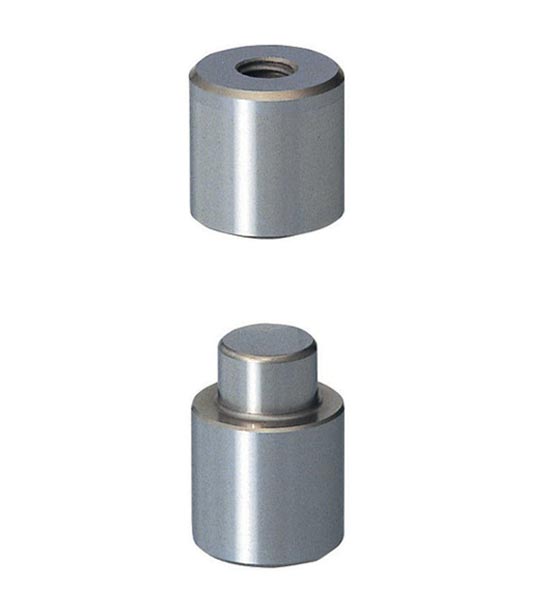

Picture of TPNF20-20 Picture of TPNF20-20 Picture of TPNF20-20

TPNF20-20

$144.12
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Full Set
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Full Set
D OD 20
L Shoulder Length 29.5
V Pin Diameter 13
E Pin Height 20
LR Lead Radius 1
LL Lead Chamfer Length 2
S Effective Engagement Distance 16
M Thread M6
