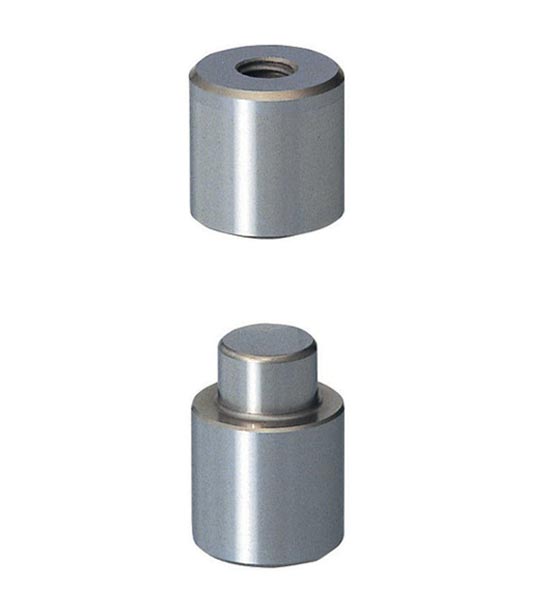

Picture of TPNF13-13 Picture of TPNF13-13 Picture of TPNF13-13

TPNF13-13

$97.94
PCS Company's Metric JIS Straight Round Locks, Standard Installation Type, Full Set
The actual product may differ slightly from the image displayed on the website.
Product specifications
Type Full Set
D OD 13
L Shoulder Length 24.5
V Pin Diameter 7
E Pin Height 13
LR Lead Radius 0.5
LL Lead Chamfer Length 1
S Effective Engagement Distance 10.5
M Thread M4
