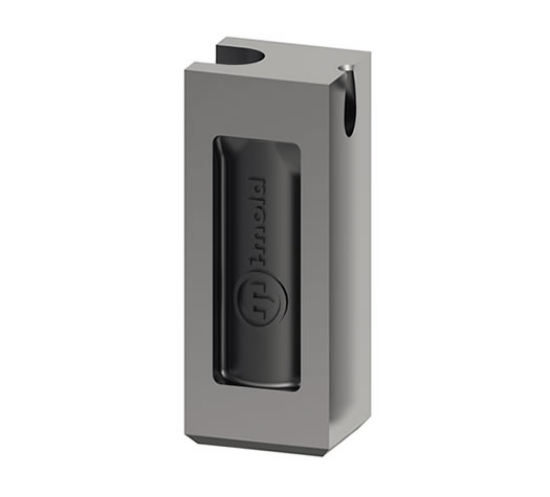

Picture of TGS12-12-S1-H Picture of TGS12-12-S1-H Picture of TGS12-12-S1-H Picture of TGS12-12-S1-H

TGS12-12-S1-H

$159.08
PCS Company offers i-mold TGS Sub-Gate Tunnel Inserts, Square, Version S1, 60 HRC, Gatepoint 1,2mm
The actual product may differ slightly from the image displayed on the website.
12x10x22+0.8, E1687/12/1.2
Product specifications
b 12
b1 10
h 22.8
d1 Gate ) 1.2
d3 ( runner size ) 5
M 5
Shot Wt.(g) - High flow 20
Shot Wt.(g) - Med flow 12
Shot Wt.(g) - Low flow 8
