TGHL-2

$280.52

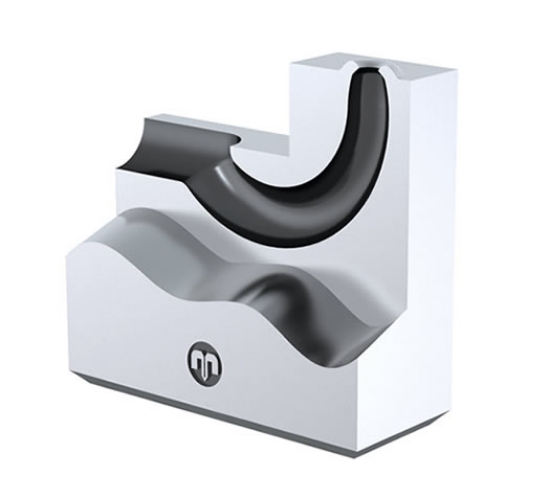

PCS Company offers i-mold TGHL tunnel gate insert ,25x10x26mm, Contourable, 54 HRC
The actual product may differ slightly from the image displayed on the website.
25x10x26, GMK-1, E1694/23
Product specifications
b Length 25
b1 Width 10
h1 Height 3
d1 Gate 0.8-1.8
d3 Runner 5
M Thread 5
Shot Wt.(g) - High flow 120
Shot Wt.(g) - Med flow 75
Shot Wt.(g) - Low flow 50
