- Corrosion - proof construction
- Longer life
- Quicker heat transfer
- High watt density
- Stainless steel, braided lead exit at 300° angle
- Nickel Coated, self locking nut
- Uniform surface for total contact
- 240v heater

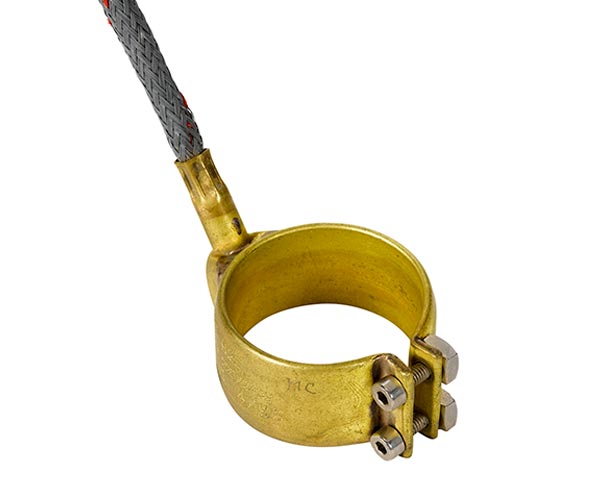

Sealed Metric Heater Bands
PCS Company's Metric heater bands are direct replacements for injection machine suppliers such as: ARBURG, BATTENFELD, BOY, DEMAG, ENGEL, KRAUS-MAFFEI, etc. Sealed bands are MICA-insulated, brass encased and hermetically sealed for longest life!
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | I.D. | Width | Wattage | Lead Length | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|
| HBSM001 | 25 | 25 | 85 | 18 | $63.17 | ||
| HBSM002 | 25 | 50 | 225 | 18 | $52.00 | ||
| HBSM003 | 30 | 25 | 110 | 18 | $52.00 | ||
| HBSM009 | 35 | 30 | 155 | 18 | $52.00 | ||
| HBSM012 | 38 | 38 | 175 | 18 | $61.05 | ||
| HBSM014 | 38 | 50 | 345 | 18 | $52.00 | ||
| HBSM016 | 40 | 25 | 160 | 18 | $52.00 | ||
| HBSM017 | 40 | 30 | 200 | 18 | $52.00 | ||
| HBSM025 | 45 | 30 | 200 | 20 | $52.00 | ||
| HBSM026 | 45 | 38 | 300 | 20 | $52.00 | ||
| HBSM027 | 48 | 20 | 135 | 40 | $52.00 | ||
| HBSM028 | 50 | 25 | 185 | 40 | $52.00 | ||
| HBSM035 | 55 | 25 | 200 | 40 | $52.00 | ||
| HBSM047 | 75 | 30 | 340 | 40 | $70.00 | ||
| HBSM051 | 80 | 38 | 500 | 40 | $123.84 | ||
| HBSM052 | 80 | 45 | 570 | 20 | $75.00 | ||
| HBSM054 | 90 | 45 | 645 | 40 | $70.00 | ||
| HBSM056 | 100 | 30 | 460 | 20 | $70.00 | ||
| HBSM061 | 35 | 40 | 210 | 20 | $52.00 | ||
| HBSM062 | 40 | 40 | 225 | 20 | $52.00 | ||
| HBSM064 | 42 | 35 | 250 | 24 | $46.00 |
