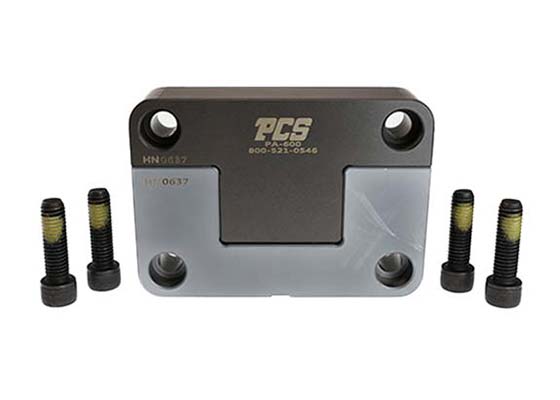

Picture of PA-600 Picture of PA-600 Picture of PA-600 Picture of PA-600

PA-600

$507.63
PCS Company's Side Lock - Matched Set
The actual product may differ slightly from the image displayed on the website.

ESLT-600, SL150X600

Product specifications
D Overall Height of Female Insert 2.875
E Base Height of Male Insert 1.375
B1 Mounting Hole Location 0.625
B2 Mounting Hole Spread 4.75
C Locking Feature Width 2.5
F Male Alignment Feature Length 1.63
