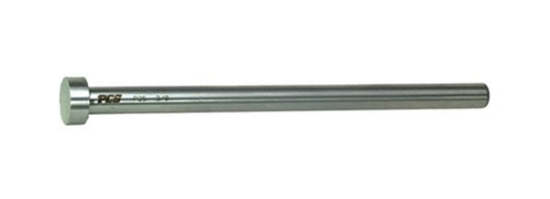

Picture of NP5-6 OS Picture of NP5-6 OS

NP5-6 OS

$4.56
PCS Company's Nitrided Oversized Ejector Pins, surface hardness 65-74 Rc, core hardness 40-45 Rc, nominal pin diameter 1/16", length 6".
The actual product may differ slightly from the image displayed on the website.
Product specifications
D Nominal Pin Diameter 1/16
Actual Pin Diameter 0.067
Actual Pin Diameter Tolerance +0/-.0003
L Overall Length 6
H Head Diameter 0.25
T Head Thickness 1/8
Annealed Head Yes
