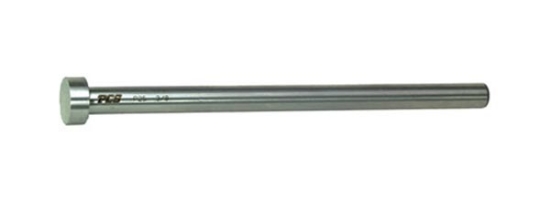

Picture of NP21-10 OS Picture of NP21-10 OS

NP21-10 OS

$6.67
PCS Company's Nitrided Oversized Ejector Pins, surface hardness 65-74 Rc, core hardness 40-45 Rc, nominal pin diameter 5/16", length 10".
The actual product may differ slightly from the image displayed on the website.
EX21M10OS, EP31L105, EP317L10
Product specifications
D Nominal Pin Diameter 5/16
Actual Pin Diameter 0.317
Actual Pin Diameter Tolerance +0/-.0003
L Overall Length 10
H Head Diameter 0.5
T Head Thickness 1/4
Annealed Head Yes
