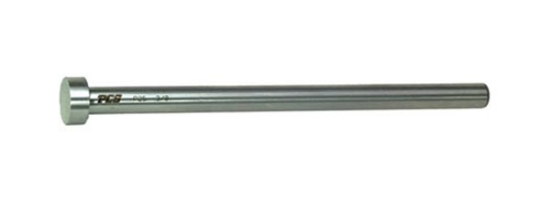

Picture of NP19-10 OS Picture of NP19-10 OS

NP19-10 OS

$6.11
PCS Company's Nitrided Oversized Ejector Pins, surface hardness 65-74 Rc, core hardness 40-45 Rc, nominal pin diameter 9/32", length 10".
The actual product may differ slightly from the image displayed on the website.
EX19M10OS, EP28L105, EP286L10
Product specifications
D Nominal Pin Diameter 9/32
Actual Pin Diameter 0.2857
Actual Pin Diameter Tolerance +0/-.0003
L Overall Length 10
H Head Diameter 0.437
T Head Thickness 1/4
Annealed Head Yes
