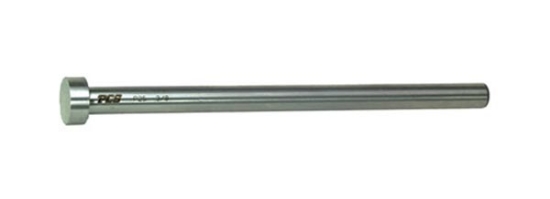

Picture of NP15-10 OS Picture of NP15-10 OS

NP15-10 OS

$5.20
PCS Company's Nitrided Oversized Ejector Pins, surface hardness 65-74 Rc, core hardness 40-45 Rc, nominal pin diameter 7/32", length 10".
The actual product may differ slightly from the image displayed on the website.
EX15M10OS, EP21L105, EP224L10
Product specifications
D Nominal Pin Diameter 7/32
Actual Pin Diameter 0.2233
Actual Pin Diameter Tolerance +0/-.0003
L Overall Length 10
H Head Diameter 0.406
T Head Thickness 3/16
Annealed Head Yes
