Metric DIN Guide Pin Bushings - With Collar

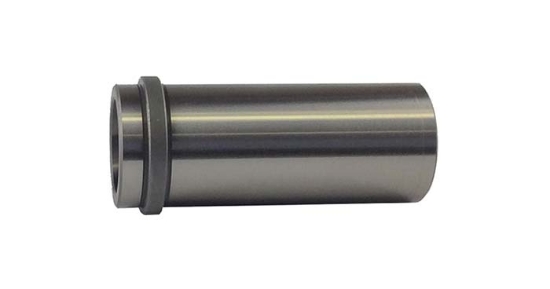

Picture of Metric DIN Guide Pin Bushings - With Collar

PCS Company offers Metric DIN Guide Pin Bushings - With Collar which are case-hardened 58 - 62 Rc and finish ground. Nominal diameters ranging from 14 mm to 42 mm are available and up to an overall length of 246 mm.

Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
Item NumberH Head DiameterL Shoulder LengthD I.DE O.D.CL Collar LengthT Head ThicknessBL Bearing LengthCAD FilesPrice (USD)Quantity
GDB-ECS-14-0172517142096Full$11.42
GDB-ECS-14-0222522142096Full$12.55
GDB-ECS-14-0272527142096Full$13.45
GDB-ECS-14-0362536142096Full$16.49
GDB-ECS-14-046254614209646$19.97
GDB-ECS-14-056255614209646$24.95
GDB-ECS-14-066256614209646$27.71
GDB-ECS-14-076257614209646$30.67
GDB-ECS-14-086258614209646$35.52
GDB-ECS-14-096259614209646$38.15
GDB-ECS-14-1162511614209646$40.63
GDB-ECS-15-0172517152096Full$12.03
GDB-ECS-15-0222522152096Full$12.55
GDB-ECS-15-0272527152096Full$13.45
GDB-ECS-15-0362536152096Full$16.49
GDB-ECS-15-046254615209646$19.83
GDB-ECS-15-056255615209646$24.95
GDB-ECS-15-066256615209646$27.71
GDB-ECS-15-076257615209646$30.67
GDB-ECS-15-086258615209646$35.52
GDB-ECS-15-096259615209646$38.15
GDB-ECS-15-1162511615209646$46.49
GDB-ECS-18-0173117182696Full$14.13
GDB-ECS-18-0223122182696Full$14.52
GDB-ECS-18-0273127182696Full$15.03
GDB-ECS-18-0363136182696Full$17.85
GDB-ECS-18-0463146182696Full$20.61
GDB-ECS-18-056315618269656$25.22
GDB-ECS-18-066316618269656$28.63
GDB-ECS-18-076317618269656$32.10
GDB-ECS-18-086318618269656$35.65
GDB-ECS-18-096319618269656$39.93
GDB-ECS-18-1163111618269656$50.74
GDB-ECS-18-1363113618269656$61.59
GDB-ECS-20-0173117202696Full$14.13
GDB-ECS-20-0223122202696Full$14.52
GDB-ECS-20-0273127202696Full$15.03
GDB-ECS-20-0363136202696Full$17.85
GDB-ECS-20-0463146202696Full$20.61
GDB-ECS-20-056315620269656$25.22
GDB-ECS-20-066316620269656$28.63
GDB-ECS-20-076317620269656$32.10
GDB-ECS-20-086318620269656$35.65
GDB-ECS-20-096319620269656$39.93
GDB-ECS-20-1163111620269656$50.74
GDB-ECS-20-1363113620269656$61.59
GDB-ECS-22-0173517223096Full$15.56
GDB-ECS-22-0223522223096Full$16.49
GDB-ECS-22-0273527223096Full$17.33
GDB-ECS-22-0363536223096Full$19.18
GDB-ECS-22-0463546223096Full$22.84
GDB-ECS-22-0563556223096Full$27.44
GDB-ECS-22-0663566223096Full$30.53
GDB-ECS-22-076357622309676$34.20
GDB-ECS-22-086358622309676$37.77
GDB-ECS-22-096359622309676$42.02
GDB-ECS-22-1163511622309676$53.78
GDB-ECS-22-1363513622309676$63.56
GDB-ECS-22-1563515622309676$72.15
GDB-ECS-24-0173517243096Full$15.56
GDB-ECS-24-0223522243096Full$16.49
GDB-ECS-24-0273527243096Full$17.33
GDB-ECS-24-0363536243096Full$19.18
GDB-ECS-24-0463546243096Full$22.84
GDB-ECS-24-0563556243096Full$27.44
GDB-ECS-24-0663566243096Full$30.53
GDB-ECS-24-076357624309676$34.20
GDB-ECS-24-086358624309676$37.77
GDB-ECS-24-096359624309676$42.02
GDB-ECS-24-1163511624309676$53.78
GDB-ECS-24-1363513624309676$63.56
GDB-ECS-24-1563515624309676$72.15
GDB-ECS-30-0274727304296Full$17.39
GDB-ECS-30-0364736304296Full$20.10
GDB-ECS-30-0464746304296Full$23.77
GDB-ECS-30-0564756304296Full$28.17
GDB-ECS-30-0664766304296Full$32.10
GDB-ECS-30-0764776304296Full$36.18
GDB-ECS-30-0864786304296Full$39.93
GDB-ECS-30-096479630429696$44.39
GDB-ECS-30-1164711630429696$54.57
GDB-ECS-30-1364713630429696$65.26
GDB-ECS-30-1564715630429696$73.47
GDB-ECS-30-1964719630429696$82.07
GDB-ECS-32-0274727324296Full$19.14
GDB-ECS-32-0364736324296Full$20.10
GDB-ECS-32-0464746324296Full$23.77
GDB-ECS-32-0564756324296Full$28.17
GDB-ECS-32-0664766324296Full$32.10
GDB-ECS-32-0764776324296Full$36.18
GDB-ECS-32-0864786324296Full$39.93
GDB-ECS-32-096479632429696$44.39
GDB-ECS-32-1164711632429696$54.57
GDB-ECS-32-1364713632429696$65.26
GDB-ECS-32-1564715632429696$73.47
GDB-ECS-32-1964719632429696$82.07
GDB-ECS-40-046604640541210Full$43.46
GDB-ECS-40-056605640541210Full$47.87
GDB-ECS-40-066606640541210Full$52.07
GDB-ECS-40-076607640541210Full$56.80
GDB-ECS-40-096609640541210Full$70.59
GDB-ECS-40-1166011640541210116$79.97
GDB-ECS-40-1366013640541210116$91.07
GDB-ECS-40-1566015640541210116$102.55
GDB-ECS-40-1966019640541210116$127.77
GDB-ECS-40-2466024640541210116$163.88
GDB-ECS-42-046604642541210Full$43.46
GDB-ECS-42-056605642541210Full$47.50
GDB-ECS-42-066606642541210Full$52.07
GDB-ECS-42-076607642541210Full$56.80
GDB-ECS-42-086608642541210Full$63.56
GDB-ECS-42-096609642541210Full$70.59
GDB-ECS-42-1166011642541210116$79.97
GDB-ECS-42-1366013642541210116$91.07
GDB-ECS-42-1566015642541210116$102.55
GDB-ECS-42-1966019642541210116$127.77
GDB-ECS-42-2466024642541210116$163.88
