Picture of M2P-732-10 Picture of M2P-732-10

M2P-732-10

$12.35

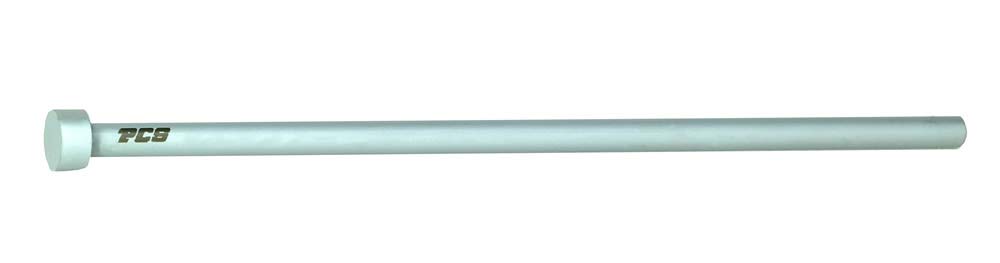

PCS Company's M2 Ejector Pin, 7/32" Diameter, 10" OAL
The actual product may differ slightly from the image displayed on the website.
XP21810
Product specifications
Nominal Pin Diameter 7/32"
D Actual Pin Diameter 0.2183
D Tolerance +.0000/-.0003
H Head Diameter 0.406
T Head Thickness 0.1875
L Overall Length 10"
