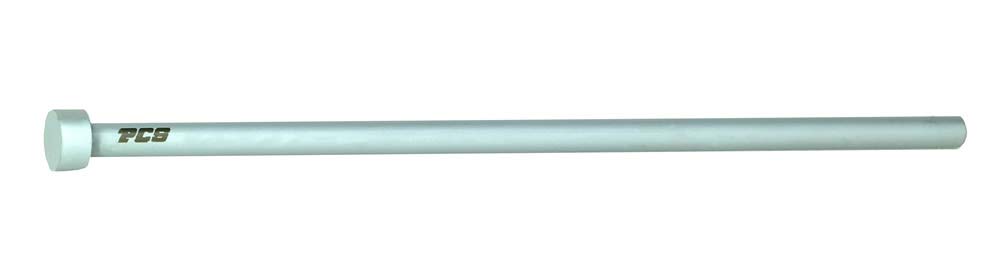

Picture of M2P-1164-10 Picture of M2P-1164-10

M2P-1164-10

$11.02
PCS Company's M2 Ejector Pin, 11/64" Diameter, 10" OAL
The actual product may differ slightly from the image displayed on the website.
XP17110
Product specifications
Nominal Pin Diameter 11/64"
D Actual Pin Diameter 0.1714
D Tolerance +.0000/-.0003
H Head Diameter 0.343
T Head Thickness 0.1875
L Overall Length 10"
