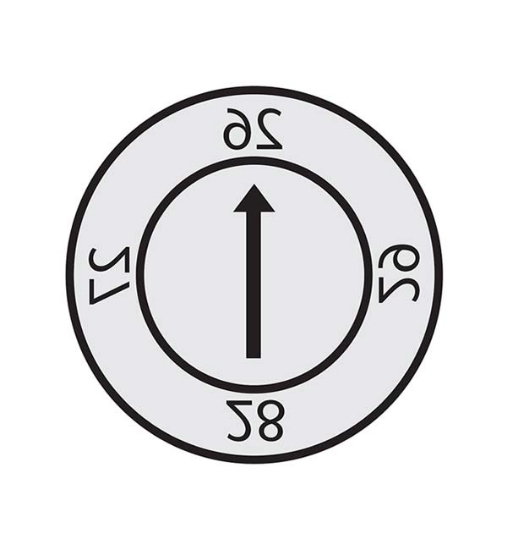

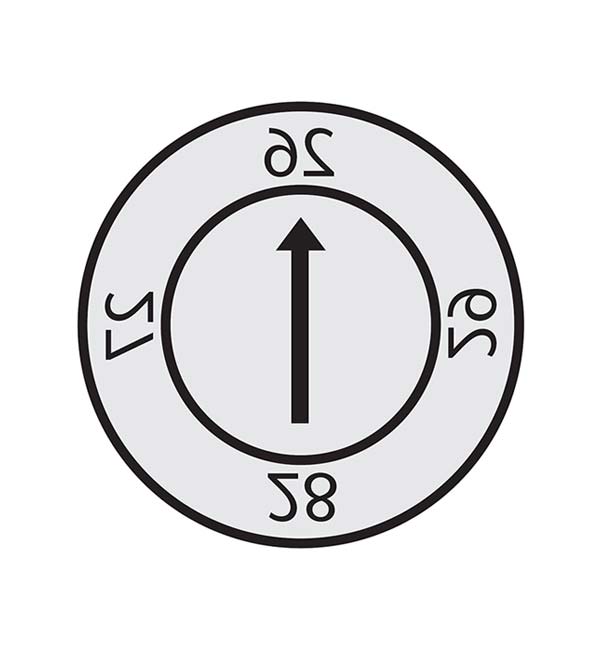

DTX16-26

$171.28
Indexable Insert Assembly, 4 Years & Arrow, 26-29
The actual product may differ slightly from the image displayed on the website.
Product specifications
Beginning Year 26
Configuration Assembly, 4 Years & Arrow
D Body Diameter 16
L Body Length 14
Body Engraving Depth 0.22
K - K.O. Hole Dia 5.0 ~ 13.0
B Center Insert Dia 11
F Cen. Ins. Length 13.7
MxP M4x0.35
TL - Thread Len. 4.8
Arrow Depth 0.5
