DTNX5

$107.44

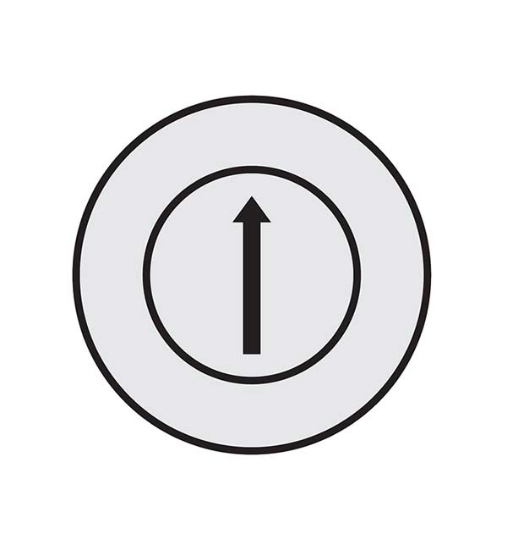

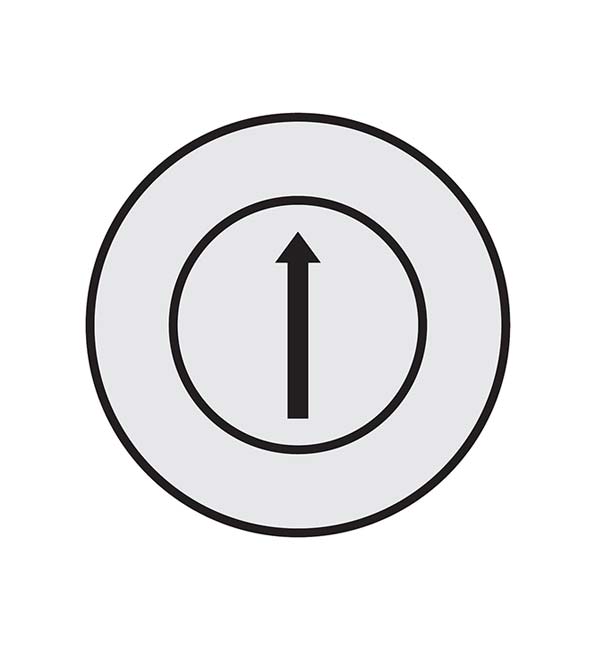

Indexable Insert Assembly, Blank Body & Arrow
The actual product may differ slightly from the image displayed on the website.
Product specifications
Configuration Assembly, Blank Body & Arrow
D Body Diameter 5
L Body Length 8
Body Engraving Depth 0.14
K - K.O. Hole Dia 3.0 ~ 4.0
B Center Insert Dia 2.9
F Cen. Ins. Length 7.7
MxP M1.6x0.2
TL - Thread Len. 2.7
Arrow Depth 0.25
