DTNX16

$132.72
$99.54

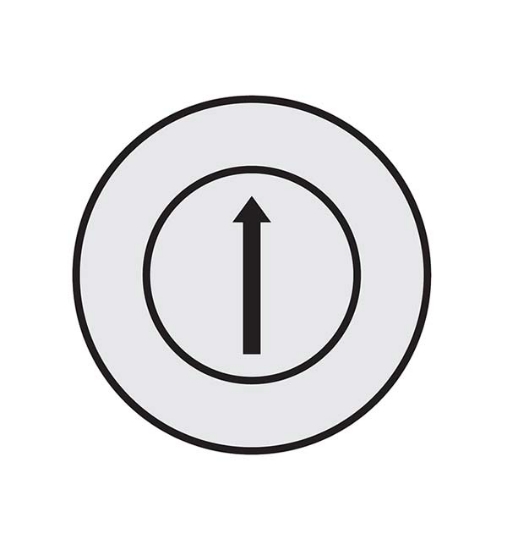

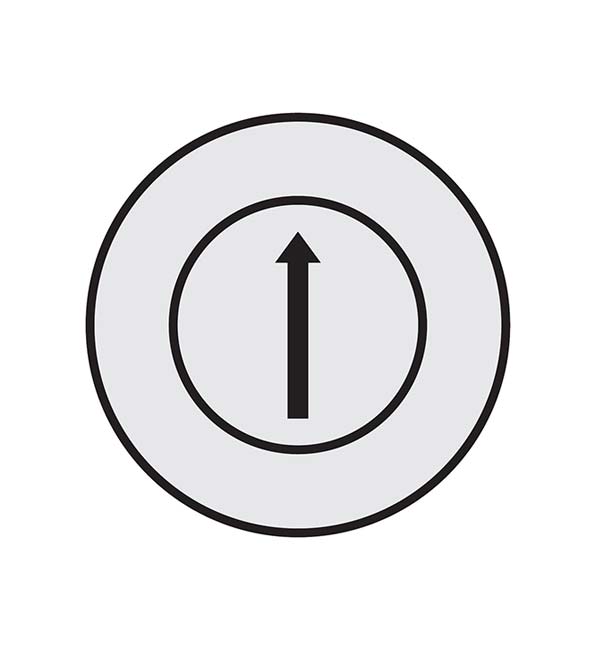

Indexable Insert Assembly, Blank Body & Arrow
The actual product may differ slightly from the image displayed on the website.
UOB0016
Product specifications
Configuration Assembly, Blank Body & Arrow
D Body Diameter 16
L Body Length 14
Body Engraving Depth 0.22
K - K.O. Hole Dia 5.0 ~ 13.0
B Center Insert Dia 11
F Cen. Ins. Length 13.7
MxP M4x0.35
TL - Thread Len. 4.8
Arrow Depth 0.5
