DTFX20

$161.41

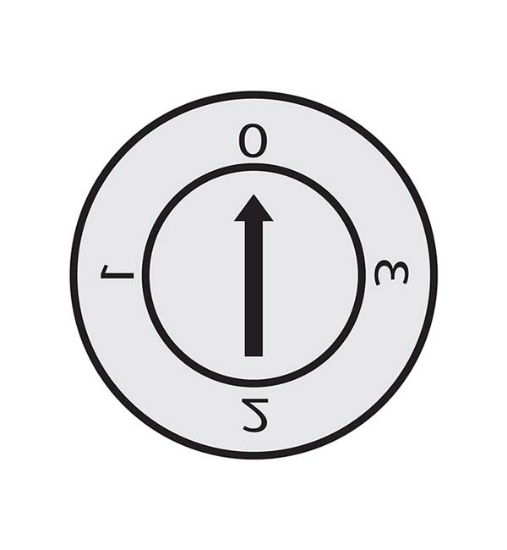

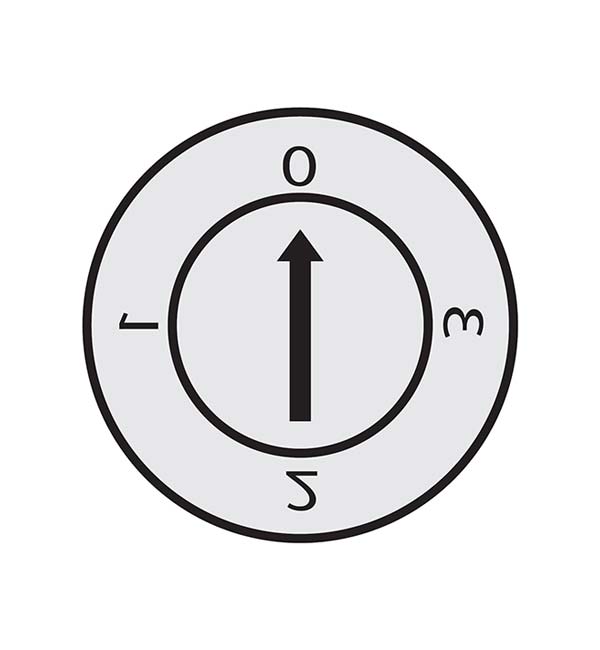

Indexable Insert Assembly, Shifts 0 - 3 & Arrow
The actual product may differ slightly from the image displayed on the website.
UOS0020
Product specifications
Configuration Assembly, Shifts & Arrow
D Body Diameter 20
L Body Length 16
Body Engraving Depth 0.22
K - K.O. Hole Dia 5.0 ~ 15.5
B Center Insert Dia 13.2
F Cen. Ins. Length 15.7
MxP M4x0.35
TL - Thread Len. 5.3
Arrow Depth 0.5
