DTDX16

$145.01
$108.76

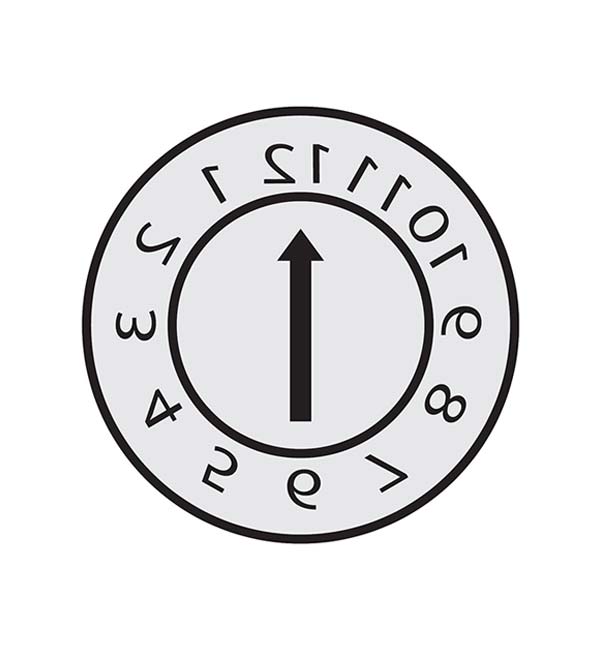

Indexable Insert Assembly, Months & Arrow Only
The actual product may differ slightly from the image displayed on the website.
UOM0016
Product specifications
Configuration Assembly, Months & Arrow Only
D Body Diameter 16
L Body Length 14
Year N/A
Body Engraving Depth 0.22
K - K.O. Hole Dia 5.0 ~ 13.0
B Center Insert Dia 11
F Cen. Ins. Length 13.7
MxP M4x0.35
TL - Thread Len. 4.8
Arrow Depth 0.5
