- Grease fitting included
- Solid bronze
- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold or die alignment
- Reduce friction
- Made in the U.S.A.

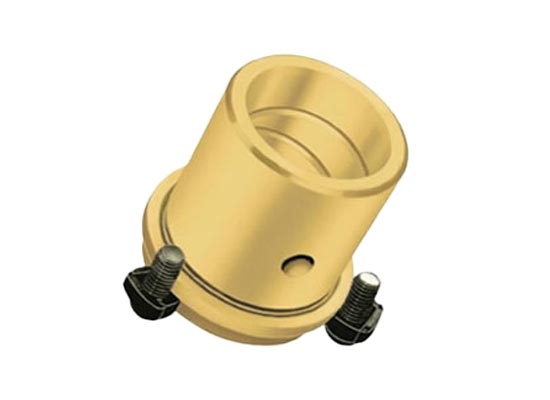

Die Bushings - Solid Bronze, Finish Ground
PCS Solid Bronze Die Bushings are precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. Included internal grease grooves help prevent galling which aids in a smooth operation. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | P I.D. | No of Clamps and Screws | A Head Diameter | B Press Fit O.D. | C Rib O.D. | D Overall Length | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|---|
| GSC-100-LB | 1 | 3 | 1.75 | 1.5 | 1-9/16 | 2-7/8 | 1-5/64 | $160.29 | ||
| GSC-100-SB | 1 | 3 | 1.75 | 1.5 | 1-9/16 | 1-7/8 | 1-5/64 | $109.45 | ||
| GSC-125-LB | 1.25 | 3 | 2.125 | 1.75 | 1-15/16 | 3-3/8 | 1-17/64 | $160.29 | ||
| GSC-125-SB | 1.25 | 3 | 2.125 | 1.75 | 1-15/16 | 2-3/8 | 1-17/64 | $129.53 | ||
| GSC-150-LB | 1.5 | 3 | 2.375 | 2 | 2-3/16 | 3-3/8 | 1-25/64 | $175.36 | ||
| GSC-150-SB | 1.5 | 3 | 2.375 | 2 | 2-3/16 | 2-3/8 | 1-25/64 | $142.46 | ||
| GSC-200-LB | 2 | 4 | 2.9375 | 2.5 | 2-3/4 | 3-7/8 | 1-43/64 | $198.61 | ||
| GSC-200-SB | 2 | 4 | 2.9375 | 2.5 | 2-3/4 | 2-7/8 | 1-43/64 | $147.34 | ||
| GSC-250-LB | 2.5 | 4 | 3.375 | 3 | 3-3/16 | 5 | 1-57/64 | $283.12 | ||
| GSC-250-MB | 2.5 | 4 | 3.375 | 3 | 3-3/16 | 4 | 1-57/64 | $205.41 | ||
| GSC-300-MB | 3 | 6 | 3.875 | 3.5 | 3-11/16 | 4 | 2-9/64 | $364.43 | ||
| GSC-300-SB | 3 | 6 | 3.875 | 3.5 | 3-11/16 | 3 | 2-9/64 | $295.15 | ||
| GSC-375-B | 3.75 | 6 | 4.875 | 4.5 | 4-11/16 | 7 | 2-41/64 | $795.21 | ||
| GSC-750-LB | 0.75 | 2 | 1.3125 | 1.125 | 1-1/8 | 2-5/16 | 55/64 | $120.15 | ||
| GSC-750-SB | 0.75 | 2 | 1.3125 | 1.125 | 1-1/8 | 1-9/16 | 55/64 | $96.16 | ||
| GSC-875-SB | 0.875 | 2 | 1.5625 | 1.375 | 1-3/8 | 1-9/16 | 63/64 | $132.04 |
