- Grease fitting included
- Solid Bronze
- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold or die alignment
- Reduce friction
- Made in the U.S.A.

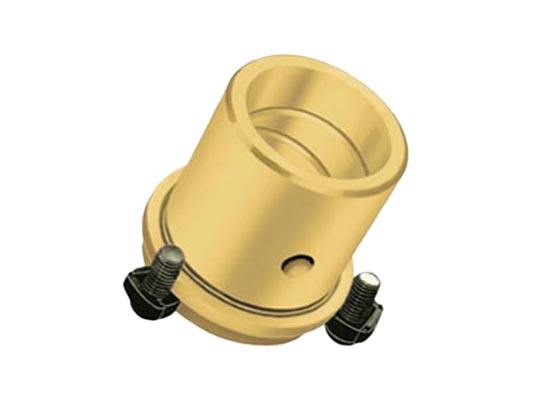

Die Bushings - Solid Bronze
PCS Solid Bronze Die Bushings are precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. Included internal grease grooves help prevent galling which aids in a smooth operation. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | B Press Fit O.D. | D Overall Length | A Head Diameter | C Rib O.D. | # Of Clamps & Screws | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SC-100-LB | 1.5 | 2-7/8 | 1-3/4 | 1-9/16 | 3 | 1-5/64 | $160.29 | ||
| SC-100-SB | 1.5 | 1-7/8 | 1-3/4 | 1-9/16 | 3 | 1-5/64 | $109.45 | ||
| SC-125-LB | 1.75 | 3-3/8 | 2-1/8 | 1-15/16 | 3 | 1-17/64 | $160.29 | ||
| SC-125-SB | 1.75 | 2-3/8 | 2-1/8 | 1-15/16 | 3 | 1-17/64 | $129.53 | ||
| SC-150-LB | 2 | 3-3/8 | 2-3/8 | 2-3/16 | 3 | 1-25/64 | $175.36 | ||
| SC-150-SB | 2 | 2-3/8 | 2-3/8 | 2-3/16 | 3 | 1-25/64 | $142.46 | ||
| SC-175-LB | 2.25 | 3-7/8 | 2-5/8 | 2-7/16 | 3 | 1-33/64 | $194.44 | ||
| SC-175-SB | 2.25 | 2-7/8 | 2-5/8 | 2-7/16 | 3 | 1-33/64 | $156.35 | ||
| SC-200-LB | 2.5 | 3-7/8 | 2-15/16 | 2-3/4 | 4 | 1-43/64 | $198.61 | ||
| SC-200-SB | 2.5 | 2-7/8 | 2-15/16 | 2-3/4 | 4 | 1-43/64 | $147.34 | ||
| SC-250-LB | 3 | 5 | 3-3/8 | 3-3/16 | 4 | 1-57/64 | $283.12 | ||
| SC-250-MB | 3 | 4 | 3-3/8 | 3-3/16 | 4 | 1-57/64 | $205.41 | ||
| SC-250-SB | 3 | 3 | 3-3/8 | 3-3/16 | 4 | 1-57/64 | $190.55 | ||
| SC-300-LB | 3.5 | 6 | 3-7/8 | 3-11/16 | 6 | 2-9/64 | $454.98 | ||
| SC-300-MB | 3.5 | 5 | 3-7/8 | 3-11/16 | 6 | 2-9/64 | $364.43 | ||
| SC-300-SB | 3.5 | 4 | 3-7/8 | 3-11/16 | 6 | 2-9/64 | $295.15 | ||
| SC-375-B | 4.5 | 7 | 4-7/8 | 4-11/16 | 6 | 2-41/64 | $795.21 | ||
| SC-450-B | 5.5 | 8 | 5-7/8 | 5-11/16 | 6 | 3-9/64 | $1,187.13 | ||
| SC-750-LB | 1.125 | 2-5/16 | 1-5/16 | 1-1/8 | 2 | 55/64 | $120.15 | ||
| SC-750-SB | 1.125 | 1-9/16 | 1-5/16 | 1-1/8 | 2 | 55/64 | $96.16 | ||
| SC-875-SB | 1.375 | 1-9/16 | 1-9/16 | 1-3/8 | 2 | 63/64 | $132.04 |
