- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold or die alignment
- Greaseless application
- Perfect for use in Medical or Food grade applications
- Reduce friction
- Made in the U.S.A.

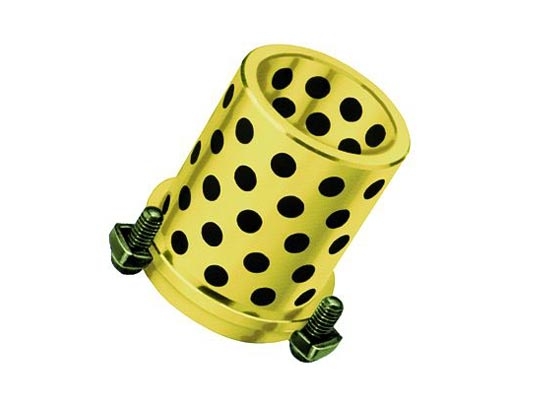

Die Bushings - Self-Lubricating, Finish Ground
PCS Self Lubricating Bronze Die Bushings are precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. The self-lubricating graphite plugs eliminate the need for grease which makes these bushings perfect for food grade, medical and high speed applications. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | No of Clamps and Screws | A Head Diameter | B Press Fit O.D. | C Rib O.D. | D Overall Length | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| GSCB-100-S | 3 | 1.75 | 1.5 | 1-9/16 | 1-9/16 | 1-5/64 | $91.45 | ||
| GSCB-125-L | 3 | 2.125 | 1.75 | 1-15/16 | 3-3/8 | 1-17/64 | $148.46 | ||
| GSCB-125-S | 3 | 2.125 | 1.75 | 1-15/16 | 2-3/8 | 1-17/64 | $113.30 | ||
| GSCB-150-L | 3 | 2.375 | 2 | 2-3/16 | 3-3/8 | 1-25/64 | $159.76 | ||
| GSCB-150-S | 3 | 2.375 | 2 | 2-3/16 | 2-3/8 | 1-25/64 | $122.49 | ||
| GSCB-200-L | 4 | 2.9375 | 2.5 | 2-3/4 | 3-7/8 | 1-43/64 | $232.00 | ||
| GSCB-250-L | 4 | 3.375 | 3 | 3-3/16 | 5 | 1-57/64 | $332.30 | ||
| GSCB-250-S | 4 | 3.375 | 3 | 3-3/16 | 3 | 1-57/64 | $220.23 | ||
| GSCB-300-S | 6 | 3.875 | 3.5 | 3-11/16 | 4 | 2-9/64 | $344.60 |
