- Aluminum bronze with graphite plugs
- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold alignment
- Greaseless application
- Perfect for use in Medical or Food grade applications
- Reduce friction
- Made in the U.S.A.

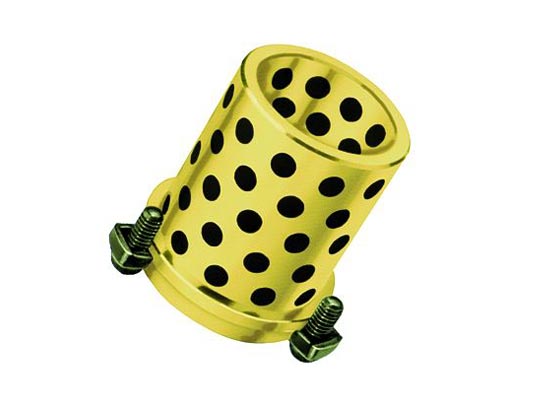

Die Bushings - Bronze Self-Lubricating
PCS Self Lubricating Bronze Die Bushings are precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. The self-lubricating graphite plugs eliminate the need for grease which makes these bushings perfect for food grade, medical and high speed applications. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | No of Clamps and Screws | B Press Fit O.D. | C Rib O.D. | D Overall Length | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| SCB-100-L | 3 | 1.5 | 1-9/16 | 2-7/8 | 1-5/64 | $119.42 | ||
| SCB-100-S | 3 | 1.5 | 1-9/16 | 1-7/8 | 1-5/64 | $91.45 | ||
| SCB-125-L | 3 | 1.75 | 1-15/16 | 3-3/8 | 1-17/64 | $148.46 | ||
| SCB-125-S | 3 | 1.75 | 1-15/16 | 2-3/8 | 1-17/64 | $113.30 | ||
| SCB-150-L | 3 | 2 | 2-3/16 | 3-3/8 | 1-25/64 | $159.76 | ||
| SCB-150-S | 3 | 2 | 2-3/16 | 2-3/8 | 1-25/64 | $122.49 | ||
| SCB-175-L | 3 | 2.25 | 2-7/16 | 3-7/8 | 1-33/64 | $204.77 | ||
| SCB-175-S | 3 | 2.25 | 2-7/16 | 2-7/8 | 1-33/64 | $155.16 | ||
| SCB-200-L | 4 | 2.5 | 2-3/4 | 3-7/8 | 1-43/64 | $232.00 | ||
| SCB-200-S | 4 | 2.5 | 2-3/4 | 2-7/8 | 1-43/64 | $181.59 | ||
| SCB-250-L | 4 | 3 | 3-3/16 | 5 | 1-57/64 | $332.30 | ||
| SCB-250-M | 4 | 3 | 3-3/16 | 4 | 1-57/64 | $272.68 | ||
| SCB-250-S | 4 | 3 | 3-3/16 | 3 | 1-57/64 | $220.23 | ||
| SCB-300-L | 6 | 3.5 | 3.6875 | 6 | 2-9/64 | $498.07 | ||
| SCB-300-M | 6 | 3.5 | 3.6875 | 5 | 2-9/64 | $421.28 | ||
| SCB-300-S | 6 | 3.5 | 3.6875 | 4 | 2-9/64 | $344.60 | ||
| SCB-300-X | 6 | 3.5 | 3.6875 | 3 | 2-9/64 | $262.26 | ||
| SCB-375-S | 6 | 4.5 | 4-11/16 | 7 | 2-41/64 | $642.99 | ||
| SCB-750-L | 2 | 1.125 | 1-1/8 | 2-5/16 | 55/64 | $149.06 | ||
| SCB-750-S | 2 | 1.125 | 1-1/8 | 1-9/16 | 55/64 | $115.85 | ||
| SCB-875-L | 2 | 1.375 | 1-3/8 | 2-5/16 | 63/64 | $186.86 | ||
| SCB-875-S | 2 | 1.375 | 1-3/8 | 1-9/16 | 63/64 | $154.97 |
