- Grease fitting included
- Bronze plated steel
- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold or die alignment
- Reduce friction
- Made in the U.S.A.

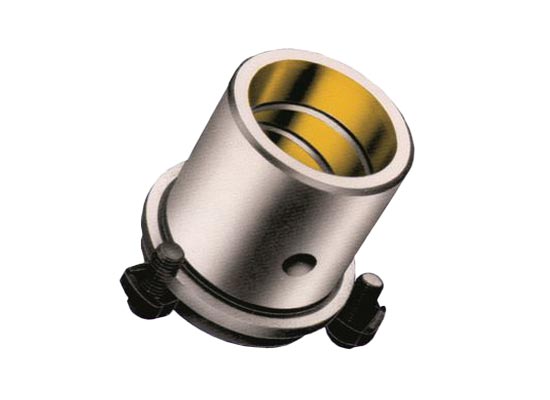

Die Bushings - Bronze Plated, Finish Ground
PCS Bronze Plated Die Bushings are centrifugally cast and precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. Included internal grease grooves help prevent galling which aids in a smooth operation. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | # Of Clamps & Screws | A Head Diameter | B Press Fit O.D. | C Rib O.D. | D Overall Length | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| GSC-100-L | 3 | 1-3/4 | 1.5 | 1-9/16 | 2-7/8 | 1-5/64 | $50.32 | ||
| GSC-100-S | 3 | 1-3/4 | 1.5 | 1-9/16 | 1-7/8 | 1-5/64 | $45.37 | ||
| GSC-125-L | 3 | 2-1/8 | 1.75 | 1-15/16 | 3-3/8 | 1-17/64 | $60.46 | ||
| GSC-125-S | 3 | 2/1/8 | 1.75 | 1-15/16 | 2-3/8 | 1-17/64 | $53.14 | ||
| GSC-150-L | 3 | 2-3/8 | 2 | 2-3/16 | 3-3/8 | 1-25/64 | $66.74 | ||
| GSC-150-S | 3 | 2-3/8 | 2 | 2-3/16 | 2-3/8 | 1-25/64 | $57.73 | ||
| GSC-200-L | 4 | 2-15/16 | 2.5 | 2-3/4 | 3-7/8 | 1-43/64 | $90.32 | ||
| GSC-200-S | 4 | 2-15/16 | 2.5 | 2-3/4 | 2-7/8 | 1-43/64 | $76.03 | ||
| GSC-250-M | 4 | 3-3/8 | 3 | 3-3/16 | 4 | 1-57/64 | $123.72 | ||
| GSC-250-S | 4 | 3-3/8 | 3 | 3-3/16 | 3 | 1-57/64 | $101.82 | ||
| GSC-300-L | 6 | 3-7/8 | 3.5 | 3-11/16 | 6 | 2-9/64 | $180.32 | ||
| GSC-300-M | 6 | 3-7/8 | 3.5 | 3-11/16 | 5 | 2-9/64 | $156.41 | ||
| GSC-750-S | 2 | 1-5/16 | 1.125 | 1-1/8 | 1-9/16 | 55/64 | $44.30 | ||
| GSC-875-L | 2 | 1-9/16 | 1.375 | 1-3/8 | 2-5/16 | 63/64 | $49.59 |
