- Grease fitting included
- Bronze plated steel
- Bushings are stocked to dimensions & tolerances shown
- Perfect for mold or die alignment
- Reduce friction
- Made in the U.S.A.

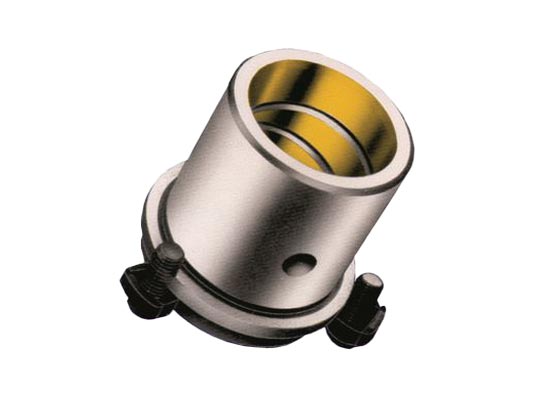

Die Bushings - Bronze Plated
PCS Bronze Plated Die Bushings are centrifugally cast and precision ground. Nominal diameters ranging from 3/4" to 4-1/2" are available. Included internal grease grooves help prevent galling which aids in a smooth operation. D-Clamps and D-Screws are included with each bushing.
Press Enter on a column header to sort the table. Press Enter again to reverse the sort order.
| Item Number | A Head Diameter | No of Clamps and Screws | B Press Fit O.D. | C Rib O.D. | D Overall Length | E Clamp Screw Radius Off Centerline | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|---|
| SC-100-L | 1.75 | 3 | 1.5 | 1-9/16 | 2-7/8 | 1-5/64 | $53.32 | ||
| SC-100-S | 1.75 | 3 | 1.5 | 1-9/16 | 1-7/8 | 1-5/64 | $48.10 | ||
| SC-125-L | 2.125 | 3 | 1.75 | 1-15/16 | 3-3/8 | 1-17/64 | $64.07 | ||
| SC-125-S | 2.125 | 3 | 1.75 | 1-15/16 | 2-3/8 | 1-17/64 | $56.35 | ||
| SC-150-L | 2.375 | 3 | 2 | 2-3/16 | 3-3/8 | 1-25/64 | $70.70 | ||
| SC-150-S | 2.375 | 3 | 2 | 2-3/16 | 2-3/8 | 1-25/64 | $61.15 | ||
| SC-175-L | 2.625 | 3 | 2.25 | 2-7/16 | 3-7/8 | 1-33/64 | $82.88 | ||
| SC-175-S | 2.625 | 3 | 2.25 | 2-7/16 | 2-7/8 | 1-33/64 | $71.29 | ||
| SC-200-L | 2.9375 | 4 | 2.5 | 2-3/4 | 3-7/8 | 1-43/64 | $95.72 | ||
| SC-200-S | 2.9375 | 4 | 2.5 | 2-3/4 | 2-7/8 | 1-43/64 | $80.59 | ||
| SC-250-L | 3.375 | 4 | 3 | 3-3/16 | 5 | 1-57/64 | $153.92 | ||
| SC-250-M | 3.375 | 4 | 3 | 3-3/16 | 4 | 1-57/64 | $131.10 | ||
| SC-250-S | 3.375 | 4 | 3 | 3-3/16 | 3 | 1-57/64 | $107.91 | ||
| SC-300-L | 3.875 | 6 | 3.5 | 3-11/16 | 6 | 2-9/64 | $191.09 | ||
| SC-300-M | 3.875 | 6 | 3.5 | 3-11/16 | 5 | 2-9/64 | $165.74 | ||
| SC-300-S | 3.875 | 6 | 3.5 | 3-11/16 | 4 | 2-9/64 | $140.28 | ||
| SC-750-L | 1.3125 | 2 | 1.125 | 1-1/8 | 2-5/16 | 55/64 | $49.46 | ||
| SC-750-S | 1.3125 | 2 | 1.125 | 1-1/8 | 1-9/16 | 55/64 | $46.94 | ||
| SC-875-L | 1.5625 | 2 | 1.375 | 1-3/8 | 2-5/16 | 63/64 | $52.57 | ||
| SC-875-S | 1.5625 | 2 | 1.375 | 1-3/8 | 1-9/16 | 63/64 | $48.81 |
