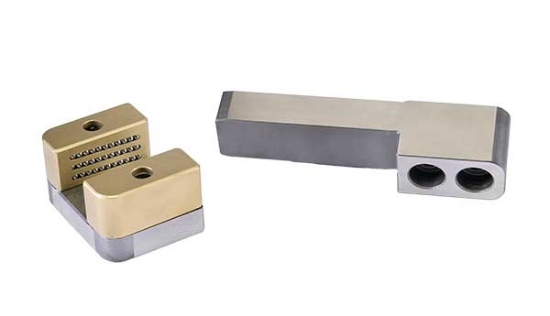

Picture of CL508045025 Picture of CL508045025

CL508045025

$398.30
PCS Company offers Bolexp Metric Ball Guided Side Lock, 45mm wide Guide, 12mm wide Bar X 25mm projection
The actual product may differ slightly from the image displayed on the website.
Product specifications
b1 Bar Width 12
b2 Guide Width 45
l1 Bar Projection 25
l2 Lock Height 27
t1 Lock Thickness 22
t3 14
R Radius 6
M Thread Size M6x1.0
SHCS M6 X 25
b3 29
l3 7
l4 20
