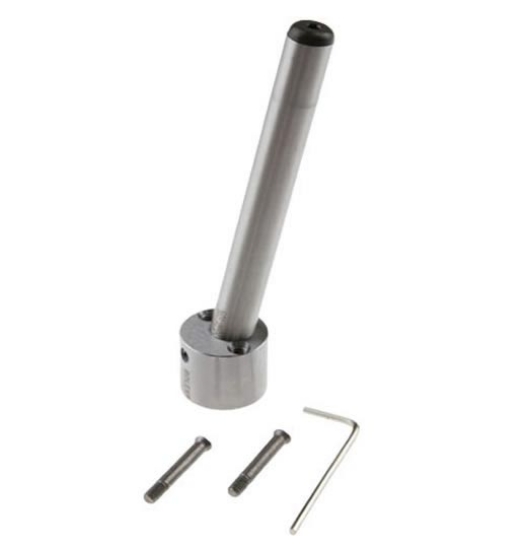

Picture of CI2012050 Picture of CI2012050

CI2012050

$119.59
PCS Company offers Bolexp Metric DIN Angle Pin Assembly, 20° angle
The actual product may differ slightly from the image displayed on the website.
Product specifications
d1 Pin Diameter 12
a Angle 20°
L1 Pin Projection Length 50
d2 Insert O.D. 24
L2 Insert Length 22
h Pin Hole Offset Distance 2.5
j Mounting Hole Spread 17.5
M Mounting Screw M4
b Pin Lead Length 4
