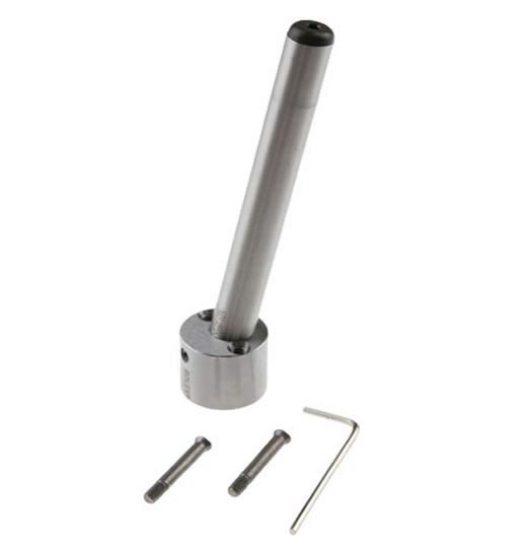

Picture of CI1016100 Picture of CI1016100

CI1016100

$127.95
PCS Company offers Bolexp Metric DIN Angle Pin Assembly, 10° angle
The actual product may differ slightly from the image displayed on the website.
Product specifications
d1 Pin Diameter 16
a Angle 10°
L1 Pin Projection Length 100
d2 Insert O.D. 30
L2 Insert Length 28
h Pin Hole Offset Distance 3
j Mounting Hole Spread 22.5
M Mounting Screw M5
b Pin Lead Length 6
