Picture of API41-10-17 Picture of API41-10-17 Picture of API41-10-17 Picture of API41-10-17

API41-10-17

$115.81

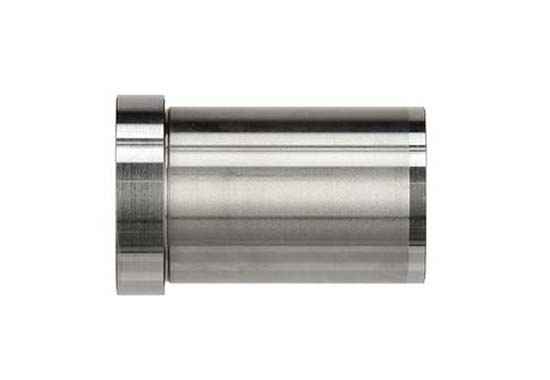

PCS Company's Angle Pin Insert, 10° angle
The actual product may differ slightly from the image displayed on the website.
Product specifications
C Overall Length 1.875
E Head Diameter 1.438
B Angle 10°
A I.D. 0.7515
D Diameter 1.25
H Flat 0.65
