Picture of 4536 Picture of 4536

4536

$67.53

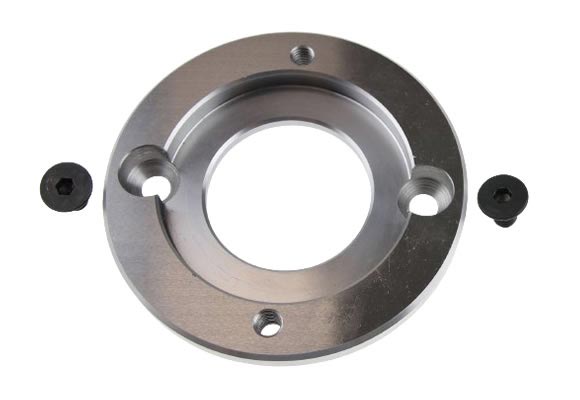

PCS Company's Locating Ring, D=4.331, 110mm
The actual product may differ slightly from the image displayed on the website.
6536, LR536
Product specifications
Description 110 mm Top Ring
A Pilot Length 0.531
D Pilot Diameter 4.327
