Picture of 10M10 Picture of 10M10

10M10

$5.23

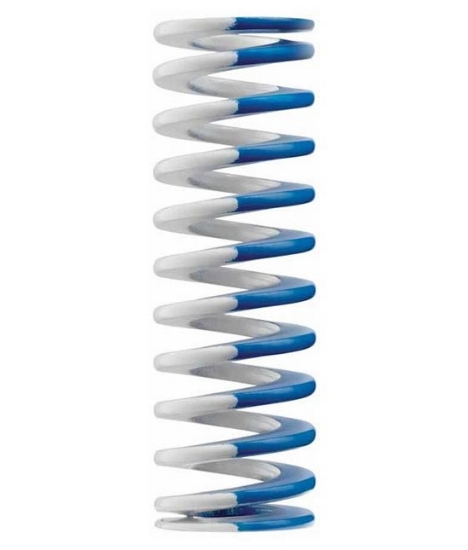

PCS Company's Medium Duty Die Spring, color coded blue with a silver stripe
The actual product may differ slightly from the image displayed on the website.
RMBL26-025, SMD5004, 103-504, MS100L1, 341-1604
Product specifications
DH Hole Diameter 1
DH Tolerance (H15) +.0331" / -0
Dd Rod Diameter 1/2
L0 Free Length 1
L0 Tolerance +.093 / -0
R Spring Rate +/- 10% (lbs/.10 Inch Deflec.) 55
A 25% Deflection (Inch) 0.25
A Load at 25% Deflection (lbs) 137.5
B 35% Deflection (Inch) 0.35
B Load at 35% Deflection (lbs) 192.5
C 40% Deflection (Inch) 0.4
C Load at 40% Deflection (lbs) 220
