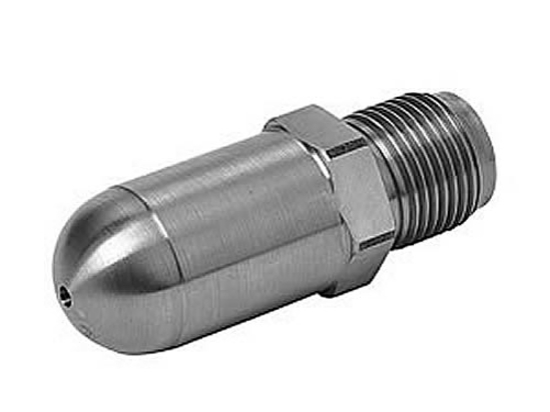

PCS Full Taper nozzle tips are made of wear resistant tool steel with 2 hardness options to choose from. The 7/8" thread and 1/2" diameter rear opening will fit industry standard adaptor bodies. Use the full taper tips when processing Polycabonate, ABS, PVC and other engineered resins.
| Item Number | Radius | Orifice | Thread | OAL | Material | CAD Files | Price (USD) | Quantity |
|---|---|---|---|---|---|---|---|---|
| FT1502 | 15 mm | 2 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT1503 | 15 mm | 3 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT1504 | 15 mm | 4 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT1505 | 15 mm | 5 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT1506 | 15 mm | 6 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT1508 | 15 mm | 8 mm | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT15125 | 15 mm | 1/8 | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT15156 | 15 mm | 5/32 | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT15218 | 15 mm | 7/32 | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT15250 | 15 mm | 1/4 | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT15312 | 15 mm | 5/16 | 7/8-14 | 1.50 | Tool Steel | $30.00 | ||
| FT2.55250 | 1/2 | 1/4 | 1-1/4-12 | 2.525 | Tool Steel | $230.00 | ||
| FT3505 | 35 mm | 5 mm | 7/8-14 | 1.50 | Tool Steel | $82.50 | ||
| FT5094 | 1/2 | 3/32 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5125 | 1/2 | 1/8 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5156 | 1/2 | 5/32 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5187 | 1/2 | 3/16 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT518710V | 1/2 | 3/16 | 7/8-14 | 1.50 | CPM10V | $130.00 | ||
| FT5218 | 1/2 | 7/32 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5250 | 1/2 | 1/4 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5281-SS | 1/2 | 9/32 | 7/8-14 | 1.50 | Stainless Steel | $28.60 | ||
| FT5312 | 1/2 | 5/16 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT5375 | 1/2 | 3/8 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT7125 | 3/4 | 1/8 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT7156 | 3/4 | 7/8-14 | 1.50 | Tool Steel | $22.00 | |||
| FT7187 | 3/4 | 3/16 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT7218 | 3/4 | 7/32 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT7250 | 3/4 | 1/4 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FT7312 | 3/4 | 5/16 | 7/8-14 | 1.50 | Tool Steel | $22.00 | ||
| FTBC5125 | 1/2 | 1/8 | 7/8-14 | 1.50 | BeCu | $47.00 | ||
| FTBC5187 | 1/2 | 3/16 | 7/8-14 | 1.50 | BeCu | $47.00 | ||
| FTCN5218 | 1/2 | 7/32 | 7/8-14 | 1.50 | BeCu | $26.00 | ||
| FTCN5312 | 1/2 | 5/16 | 7/8-14 | 1.50 | BeCu | $44.00 | ||
| FTCN5375 | 1/2 | 3/8 | 7/8-14 | 1.50 | BeCu | $44.00 | ||
| FTCN7156 | 3/4 | 5/32 | 7/8-14 | 1.50 | BeCu | $44.00 | ||
| FTCN7250 | 3/4 | 1/4 | 7/8-14 | 1.50 | BeCu | $44.00 | ||
| FTCN7312 | 3/4 | 5/16 | 7/8-14 | 1.50 | BeCu | $25.00 |
